Lenovo 4XC7A08228 network card Internal Ethernet 25000 Mbit/s
- Brand
- Lenovo
- Product code
- 4XC7A08228
- SKU
- 74RQ4ZG628V0A
- EAN/GTIN
- 889488466214
- Wired
- PCI Express Ethernet
- 10 Gigabit Ethernet, 25 Gigabit Ethernet 25000 Mbit/s
- Internal Component for: Server
Product Info
The ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is based on eighth-generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.
This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about QLogic 25 GbE network adapter and consider its use in IT solutions.
The ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is based on eighth-generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.

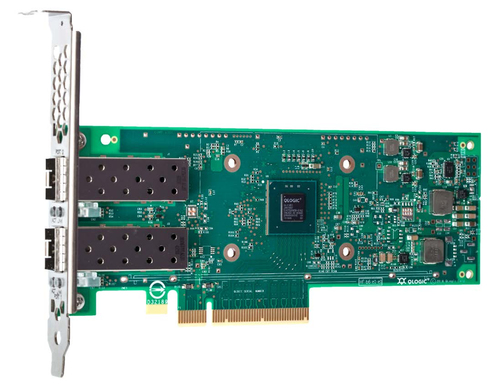

The following figure shows the ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| Network | |
| Maximum data transfer rate | 25000 Mbit/s |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1as |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000,25000 Mbit/s |
| Design | |
| Component for | Server |
| Product colour | Green |
| Internal | Yes |
| LED indicators | Yes |
| Certification | UL 60950-1 CSA C22.2 TUV EN60950-1 TUV IEC 60950-1 CB Certified FCC Rules,CFR Title 47, Part 15, Subpart Class A Industry Canada, ICES-003: Class A EN55032 EN55024 EN61000-3-2 EN61000-3-3 VCCI: Class A AS/NZS: Class A KC-RRA Class A BSMI CNS 13438 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 167 mm |
| Height | 69 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
