Lenovo 7XC7A05523 network card Internal Ethernet / Fiber 25000 Mbit/s
- Brand
- Lenovo
- Product code
- 7XC7A05523
- SKU
- TBSMGS2OUQ7WA
- EAN/GTIN
- 889488457977
- Wired
- PCI Express Ethernet / Fiber
- 25000 Mbit/s
- Internal Component for: Server
Product Info

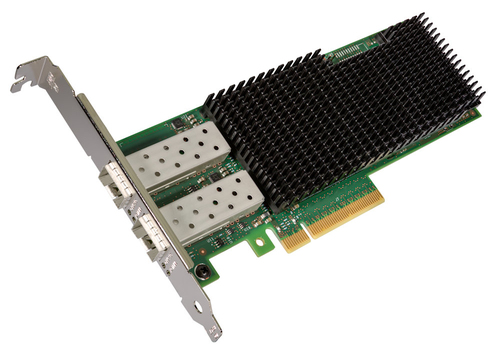

The Intel XXV710 25Gb dual-port Ethernet adapter is a flexible follow-on to the X710 10Gb adapters and is best suited for existing 10Gb customers where they need to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
This product guide provides essential presales information to understand the XXV710 adapter and its key features, specifications and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about XXV710 and consider its use in IT solutions.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet / Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate | 25000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9728 |
| VLAN tagging | Yes |
| iSCSI support | Yes |
| Load balancing system | Yes |
| Design | |
| Component for | Server |
| Product colour | Black, Green |
| Internal | Yes |
| LED indicators | Yes |
| Certification | EN55032 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A Japan VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1 |
| System requirements | |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Microsoft Windows Server Core RS3 Red Hat Enterprise Linux 6.9 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 7.4 SUSE Linux Enterprise Server 11 SP4 SUSE Linux Enterprise Server 11 SP4 with Xen SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 12 SP2 with Xen SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP3 with Xen VMware vSphere ESXi 6.0 U3 VMware vSphere ESXi 6.5 U1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Quantity | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Flow control support | Yes |
