Lenovo 7Y37A01093 interface cards/adapter
Lenovo 7Y37A01093 interface cards/adapter Internal M.2
- Brand
- Lenovo
- Product code
- 7Y37A01093
- SKU
- LRZXJD6N8OOZ1
- EAN/GTIN
- 889488433544
- Internal
- Host interface: M.2
- Output interface: M.2
- Black, Blue, Green
€191.06
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info

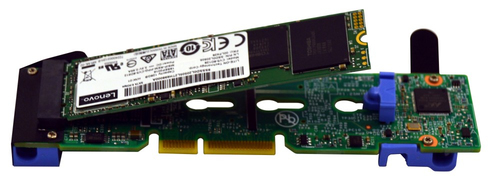

M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives with the addition of a supported M.2 adapter.
The M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the ThinkSystem server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.
There are two M.2 adapters supported:
- Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit
- Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement Kit
| Ports & interfaces | |
|---|---|
| Host interface | M.2 |
| Output interface | M.2 |
| Design | |
| Internal | Yes |
| Product colour | Black, Blue, Green |
| Easy to install | Yes |
| Features | |
| RAID levels | 0, 1, JBOD |
| Plug and Play | Yes |
| Weight & dimensions | |
| Weight | 18 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
