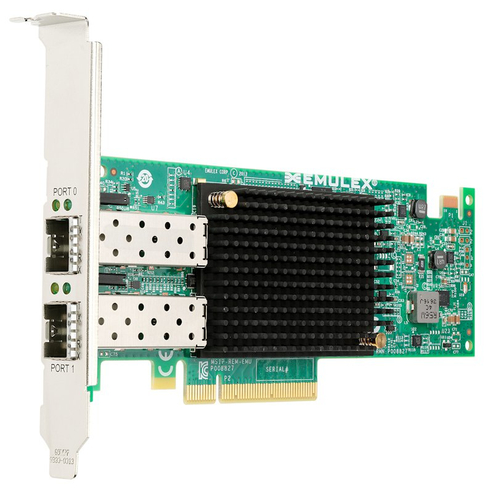

Lenovo 00AG580 network card Internal Fiber 10000 Mbit/s
- Brand
- Lenovo
- Product code
- 00AG580
- SKU
- EP6PE1SH4XSNK
- EAN/GTIN
- 889488109715
- Wired
- PCI Express Fiber
- 10000 Mbit/s
- Internal
Product Info
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity.
This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions.
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity. These new features help reduce complexity, reduce cost, and improve performance with Lenovo servers.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
| iSCSI support | Yes |
| Design | |
| Internal | Yes |
| Compatible products | x3550 M5 x3650 M5 x3850 X6/x3950 X6 nx360 M5 x3750 M4 x3850 X6/x3950 X6 |
| Power | |
| Power consumption (typical) | 14.4 W |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 69 mm |
| Depth | 17 mm |
| Height | 167 mm |
| Packaging data | |
| Package weight | 450 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Receive Side Scaling (RSS) | Yes |
