Lenovo 4XB7A38240 internal solid state drive

4XB7A38240 - 889488522033

Lenovo 4XB7A38240 internal solid state drive 6.4 TB Half-Height/Half-Length (HH/HL) PCI Express 3.0 NVMe TLC 3D NAND

Brand: Lenovo
Product code: 4XB7A38240
SKU: AAYZPYX2NO8ZE
EAN/GTIN: 889488522033

6.4 TB Half-Height/Half-Length (HH/HL) PCI Express 3.0
718000 IOPS
117000 IOPS
TLC 3D NAND NVMe
Component for: Server/workstation

€12240.88 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

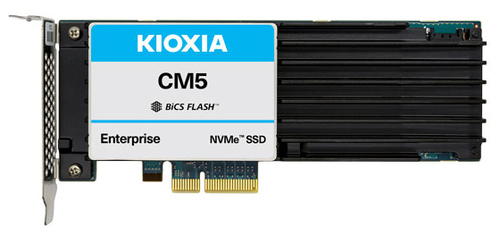

ThinkSystem HHHL Kioxia CM5-V 6.4TB Mainstream NVMe PCIe3.0 x4 Flash Adapter

Lenovo 4XB7A38240. SSD capacity: 6.4 TB, SSD form factor: Half-Height/Half-Length (HH/HL), Component for: Server/workstation

The ThinkSystem Kioxia CM5-V Mainstream NVMe Flash Storage Adapters in capacities from 1.6 TB to 6.4 TB are advanced data center PCIe add-in cards optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

This product guide provides essential presales information to understand the Mainstream NVMe adapter offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

Specifications

Features

SSD form factor Half-Height/Half-Length (HH/HL)

SSD capacity 6.4 TB

Interface PCI Express 3.0

Memory type TLC 3D NAND

NVMe Yes

Component for Server/workstation

Random read (4KB) 718000 IOPS

Random write (4KB) 117000 IOPS

Random latency - read (up to) 106 µs

Random latency - write (up to) 10 µs

Uncorrectable Bit Error Rate (UBER) < 1 per 10^17 bits read

Mean time between failures (MTBF) 2500000 h

Certification Underwriters Laboratories: UL60950-1 Canada: CAN/CSA-C22.2 No.60950-1 TUV: EN 60950-1 BSMI (Taiwan): CNS 13438 (CISPR Pub. 22 Class B): D33003 MSIP: KN22, KN24 (CISPR Pub. 22 Class B) Australia/New Zealand: AS/NZS CISPR32:2015 Class B Canada: ICES-003 Issue 6 Class B EMC: EN55022 (2010) Class B EMC: EN55024 (2010) RoHS 2011/65/EU: EN50581 (2012) Category 3

Power

Power consumption (max) 16 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 5 - 95%

Operating vibration 2.17 G

Operating shock 400 G

Maximum non-operating altitude 12192 m

Maximum operating altitude 5486 m

Weight & dimensions

Width 168 mm

Depth 19 mm

Height 69 mm

Weight 220 g
