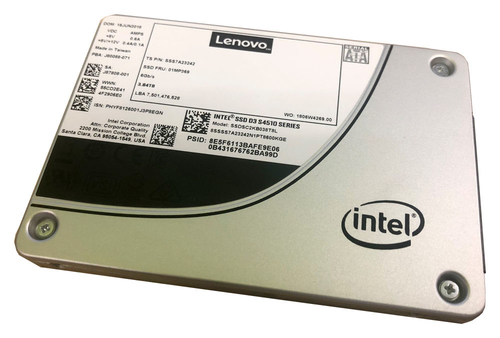

Lenovo 4XB7A38154 internal solid state drive

4XB7A38154 - 0889488532964

Lenovo 4XB7A38154 internal solid state drive 960 GB 2.5 inch Serial ATA III 3D TLC NAND

Brand: Lenovo
Product code: 4XB7A38154
SKU: CTBAKT7I30LT9
EAN/GTIN: 0889488532964

960 GB 2.5" Serial ATA III
Read speed: 560 MB/s 95000 IOPS
Write speed: 510 MB/s 36000 IOPS
3D TLC NAND
Hardware encryption 256-bit AES
S.M.A.R.T. support
Component for: Server/workstation

€1316.58 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

ThinkSystem 7mm Intel S4510 960GB Entry SATA 6Gb Hot Swap SSD

Lenovo 4XB7A38154. SSD capacity: 960 GB, SSD form factor: 2.5", Read speed: 560 MB/s, Write speed: 510 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation

By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4510 Entry SATA SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.

Rigorous testing of S4510 Entry SATA SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.

Specifications

Features

Security algorithms 256-bit AES

SSD form factor 2.5"

SSD capacity 960 GB

Interface Serial ATA III

Memory type 3D TLC NAND

Component for Server/workstation

Hardware encryption Yes

Data transfer rate 6 Gbit/s

Read speed 560 MB/s

Write speed 510 MB/s

Random read (4KB) 95000 IOPS

Random write (4KB) 36000 IOPS

Read latency 36 µs

Write latency 37 µs

S.M.A.R.T. support Yes

Hot-swap Yes

Mean time between failures (MTBF) 2000000 h

Certification FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC

Power

Power consumption (write) 3 W

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Operating relative humidity (H-H) 5 - 95%

Operating vibration 2.17 G

Non-operating vibration 3.13 G

Operating shock 1000 G

Maximum operating altitude 3050 m

Weight & dimensions

Width 70 mm

Depth 100 mm

Height 7 mm

Weight 63 g

Packaging data

Package width 174 mm

Package depth 133 mm

Package height 63 mm

Package weight 434 g

Logistics data

Harmonized System (HS) code 84717070
