Lenovo 4XB7A17198 internal solid state drive

4XB7A17198 - 8894885120722

Lenovo 4XB7A17198 internal solid state drive 4 TB EDSFF PCI Express 3.0 NVMe

Brand: Lenovo
Product code: 4XB7A17198
SKU: NV6JKRJ4GQGQQ
EAN/GTIN: 8894885120722

4 TB EDSFF PCI Express 3.0
610200 IOPS
75000 IOPS
NVMe
S.M.A.R.T. support
Component for: Server/workstation

€5599.92 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

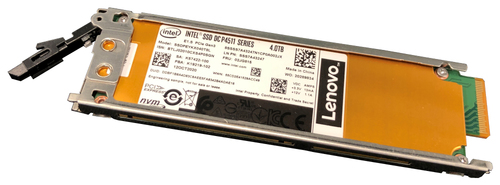

ThinkSystem E1.S P4511 4.0TB Read Intensive NVMe PCIe 3.0 x4 HS

Lenovo 4XB7A17198. SSD capacity: 4 TB, SSD form factor: EDSFF, Component for: Server/workstation

The Intel P4510 and P4511 Entry NVMe SSDs are general-purpose yet high-performance drives with a PCIe 3.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the Intel P4510 Series SSDs and consider their use in IT solutions.

Specifications

Features

SSD form factor EDSFF

SSD capacity 4 TB

Interface PCI Express 3.0

NVMe Yes

Component for Server/workstation

Random read (4KB) 610200 IOPS

Random write (4KB) 75000 IOPS

Sequential latency - read (up to) 12 µs

Sequential latency - write (up to) 14 µs

S.M.A.R.T. support Yes

Hot-swap Yes

Uncorrectable Bit Error Rate (UBER) < 1 per 10^17 bits read

Mean time between failures (MTBF) 2000000 h

Certification FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC

Power

Power consumption (read) 12.5 W

Power consumption (write) 12.5 W

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Operating relative humidity (H-H) 5 - 90%

Operating vibration 2.17 G

Operating shock 1000 G

Weight & dimensions

Width 70 mm

Depth 100 mm

Height 15 mm

Weight 139 g

Other features

Endurance rating 3.33 PB
