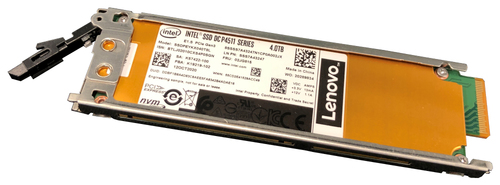

Lenovo 4XB7A17198 internal solid state drive
Lenovo 4XB7A17198 internal solid state drive 4 TB EDSFF PCI Express 3.0 NVMe
- Brand
- Lenovo
- Product code
- 4XB7A17198
- SKU
- NV6JKRJ4GQGQQ
- 4 TB EDSFF PCI Express 3.0
- 610200 IOPS
- 75000 IOPS
- NVMe
- S.M.A.R.T. support
- Component for: Server/workstation
€5560.25
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The Intel P4510 and P4511 Entry NVMe SSDs are general-purpose yet high-performance drives with a PCIe 3.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the Intel P4510 Series SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| SSD form factor | EDSFF |
| SSD capacity | 4 TB |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Component for | Server/workstation |
| Random read (4KB) | 610200 IOPS |
| Random write (4KB) | 75000 IOPS |
| Sequential latency - read (up to) | 12 µs |
| Sequential latency - write (up to) | 14 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
| Power | |
| Power consumption (read) | 12.5 W |
| Power consumption (write) | 12.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 139 g |
| Other features | |
| Endurance rating | 3.33 PB |
