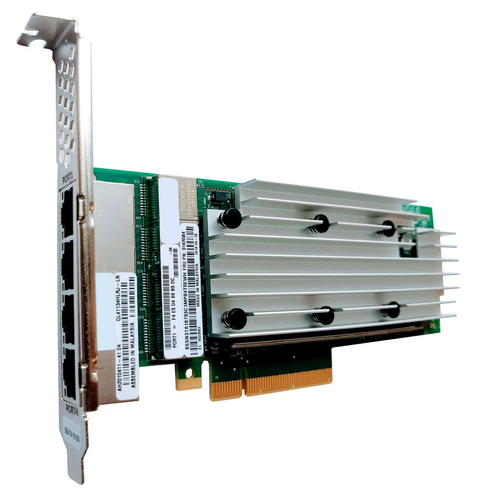

Lenovo 4XC7A08225 network card Internal Ethernet 10000 Mbit/s
- Brand
- Lenovo
- Product code
- 4XC7A08225
- SKU
- 2W93UYGFOQRFV
- EAN/GTIN
- 889488472949
- Wired
- PCI Express Ethernet
- 10 Gigabit Ethernet 10000 Mbit/s 10GBase-T
- Internal Component for: Server
Product Info
The ThinkSystem QLogic QL41134 PCIe 10Gb 4-Port Base-T Ethernet Adapter is an advanced Quad-port 10GBASE-T Ethernet Adapter from Cavium which features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. The adapter is suitable for customers wishing to use advanced technologies while still maintaining their investment in RJ45 copper wiring.
This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about QLogic 10GBase-T network adapter and consider its use in IT solutions.
The ThinkSystem QLogic QL41134 PCIe 10Gb 4-Port Base-T Ethernet Adapter is an advanced Quad-port 10GBASE-T Ethernet Adapter from Cavium which features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. The adapter is suitable for customers wishing to use advanced technologies while still maintaining their investment in RJ45 copper wiring.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Design | |
| Component for | Server |
| Product colour | Green, Silver |
| Internal | Yes |
| LED indicators | Yes |
| Certification | UL 60950-1 CSA C22.2 TUV EN60950-1 TUV IEC 60950-1 CB Certified FCC Rules,CFR Title 47, Part 15, Subpart Class A Industry Canada, ICES-003: Class A EN55032 EN55024 EN61000-3-2 EN61000-3-3 VCCI: Class A AS/NZS: Class A KC-RRA Class A BSMI CNS 13438 |
| System requirements | |
| Linux operating systems supported | SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12 |
| Server operating systems supported | Windows Server 2019, Windows Server 2012 R2, Windows Server 2016 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 167 mm |
| Height | 69 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
