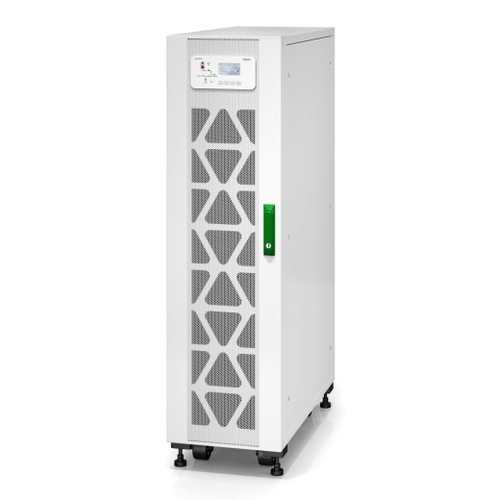

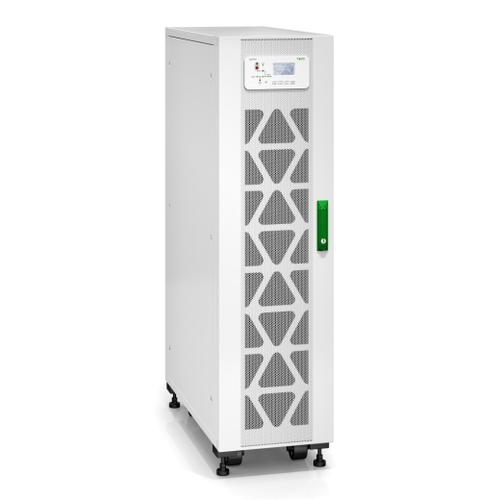

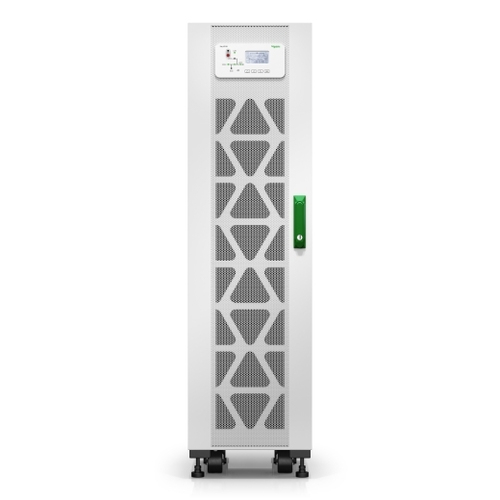

APC Easy uninterruptible power supply (UPS)

E3SUPS20K3IB1 - 731304428213

APC Easy uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

Brand: APC
Product code: E3SUPS20K3IB1
SKU: CVC7PLW0DZIE2
EAN/GTIN: 731304428213

Double-conversion (Online)
20 kVA 20000 W
Sealed Lead Acid (VRLA) 240 V
Tower White

€8799.14 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Easy UPS 3S 20 kVA 400 V (3:1)

APC Easy. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 240 V, Typical backup time at full load: 15 min. Form factor: Tower, Product colour: White, Display type: LCD. Compliance certificates: CE, RoHS, Certification: EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM. Width: 380 mm, Depth: 907 mm, Height: 1400 mm

Easy UPS 3S 20 kVA 400 V (3:1)

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 20 kVA

Output power 20000 W

Input operation voltage (min) 304 V

Input operation voltage (max) 477 V

Input frequency 45/65 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Maximum current 37 A

Number of input phases 3

Input power factor 0.99

Output power factor 1

Crest factor 3:1

ECO mode Yes

Emergency Power Off (EPO) Yes

Output voltage Total Harmonic Distortion (THD) 3%

Input current Total Harmonic Distortion (THD) 5%

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 240 V

Number of batteries supported 2

Typical backup time at full load 15 min

Design

Form factor Tower

Product colour White

Display type LCD

LED indicators Yes

International Protection (IP) code IP20

Certification EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 1000 m

Non-operating altitude 0 - 15240 m

Technical details

Sustainability compliance Yes

Sustainability certificates CE, RoHS

Weight & dimensions

Width 380 mm

Depth 907 mm

Height 1400 mm

Weight 177 kg

Package width 563 mm

Package depth 1014 mm

Package height 1640 mm

Package weight 186 kg

Logistics data

Harmonized System (HS) code 85078000
