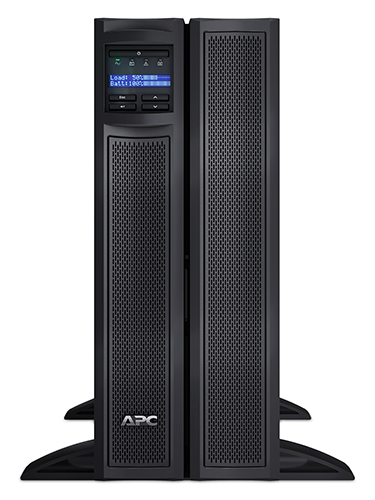

APC SMX3000LV uninterruptible power supply (UPS)
APC SMX3000LV uninterruptible power supply (UPS) 3 kVA 2700 W 10 AC outlet(s)
- Brand
- APC HW
- Product code
- SMX3000LV
- SKU
- AM0JSA8XJV5HJ
- 3 kVA 2700 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
€2330.54
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| Features | |
|---|---|
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 70 V |
| Input operation voltage (max) | 153 V |
| Input frequency | 50/60 Hz |
| Surge energy rating | 540 J |
| Efficiency | 97.5% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L5-30R |
| Power plug | NEMA L5-30P |
| AC outlets quantity | 10 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| LED indicators | Yes |
| Certification | BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A REACH UL 1449 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 178 mm |
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 38.6 kg |
| Other features | |
| Nominal output voltage | 120 V |
| Nominal input voltage | 120 V |
| Output connection type | 6 x NEMA 5-15R & 3 x NEMA 5-20R & 1 x NEMA L5-30R |
