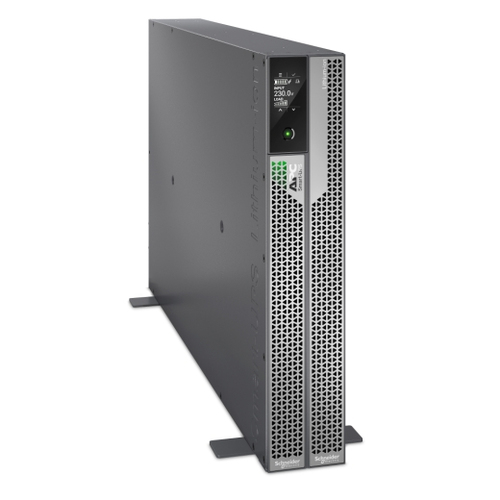

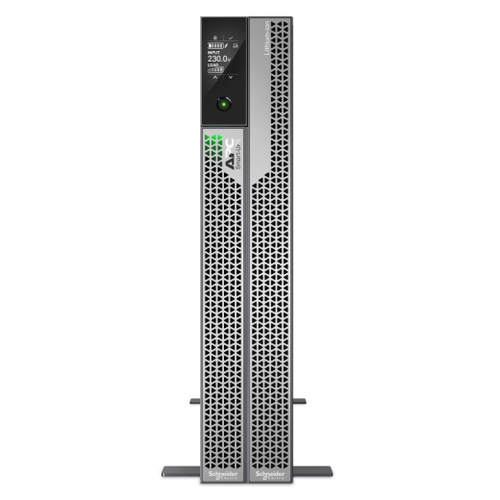

APC SRTL5KRM2UI uninterruptible power supply (UPS)
SRTL5KRM2UI - 731304435754
APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KW, 2U Rack/Tower, 6x C13 & 4x C19, NMC
- Brand
- APC HW
- Product code
- SRTL5KRM2UI
- SKU
- 8GM1QQD07Y3JI
- EAN/GTIN
- 731304435754
- Ultra-high power density, On-Line power protection with Lithium-ion batteries and scalable runtime options
- Includes: 1 CD (software and documentation)
€8381.47
(Inc. VAT)
(Delivery 2-4 working days)

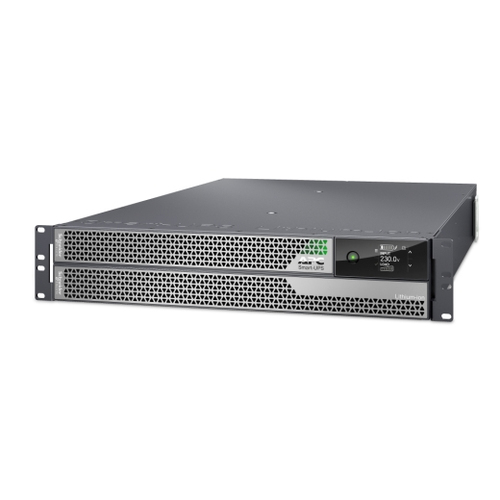

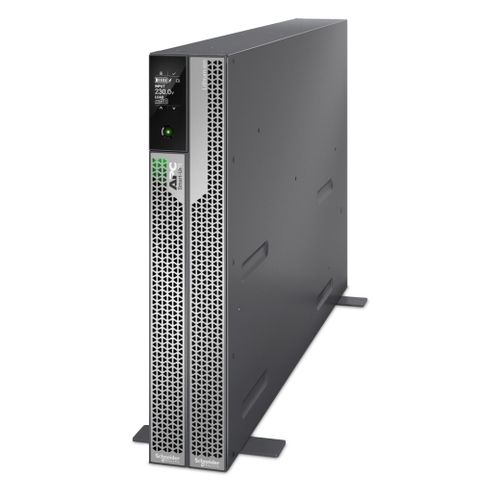

APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KW, 2U Rack/Tower, 6x C13 & 4x C19, NMC
APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KW, 2U Rack/Tower, 6x C13 & 4x C19, NMC. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 10 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 180 V, Typical backup time at full load: 5.25 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, RoHS
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
5 kVA
Output power
5000 W
Waveform
Sine
Input operation voltage (min)
180 V
Input operation voltage (max)
275 V
Input frequency
40/70 Hz
Output operation voltage (max)
220 V
Output frequency
50/60 Hz
Surge energy rating
1260 J
Heat dissipation
931 BTU/h
Power factor
1
Output power factor
1
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Auto-restart
Yes
Ports & interfaces

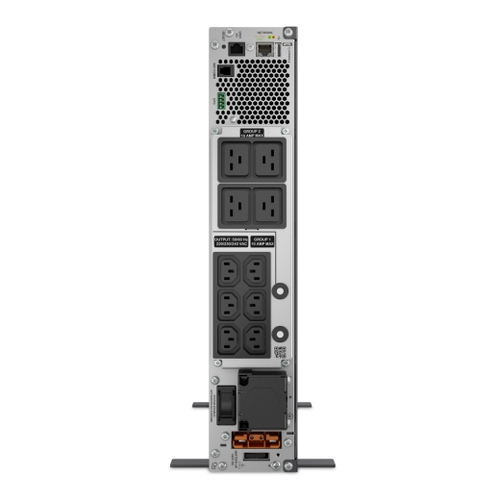

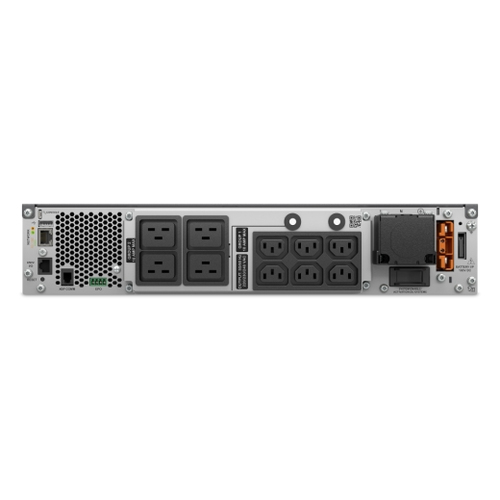

AC outlet types
C13 coupler, C19 coupler
Power plug
Hardwire
AC outlets quantity
10 AC outlet(s)
USB port
Yes
Serial interface
Yes
Serial ports quantity
1
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery voltage
180 V

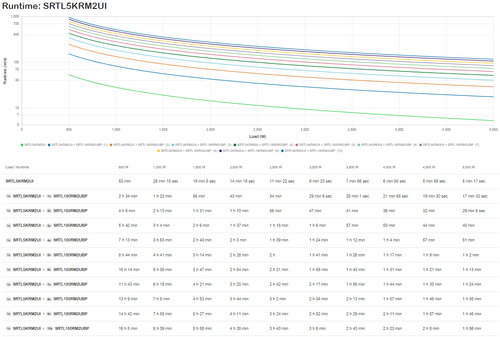

Typical backup time at full load
5.25 min
Battery life (max)
10 year(s)
Battery recharge time
1.5 h
Automatic battery test
Yes
Cold start
Yes
Design

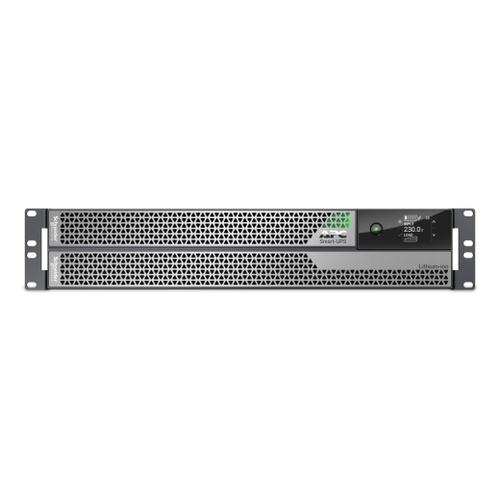

Form factor
Rackmount
Rack capacity
2U
Product colour
Black
Display type
LCD
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Technical details
Sustainability compliance
Yes
Sustainability certificates
CE, Green Premium, RoHS
Weight & dimensions
Width
432 mm
Depth
701 mm
Height
86 mm
Weight
29.2 kg
Package width
585 mm
Package depth
984 mm
Package height
392 mm
Package weight
38.5 kg
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
