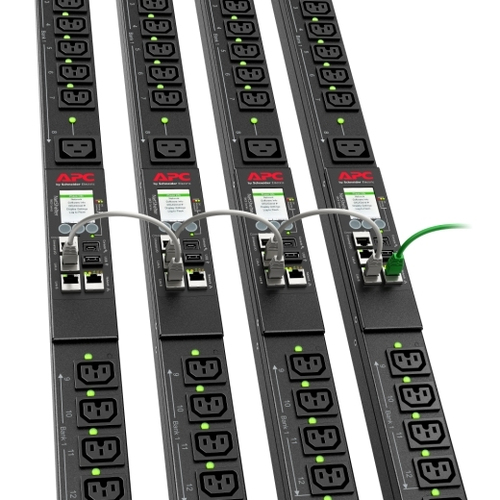

APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets
- Brand
- APC HW
- Product code
- APDU9941
- SKU
- 3C8J8EW3HKDRL
- EAN/GTIN
- 731304356264
Product Info
Field-replaceable NMC
Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.
High Retention Outlets
With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.
60C Operating Temperature
Select 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).
C13/C15 and C19/C21 Hybrid Outlets
Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.
Hydraulic Magnetic Circuit Breakers
Provide increased availability by maintaining trip current over a wide temperature range.
| Design | |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |

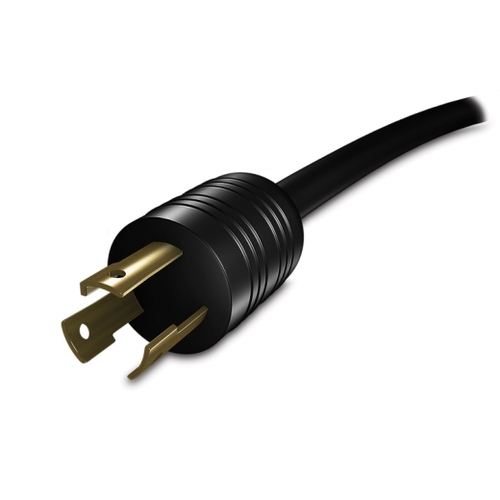

| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Certification | CUL , FCC 15 A, ICES-003, PSE |
| Power | |
| Nominal input voltage | 90 - 264 V |
| Maximum current | 30 A |
| Nominal output voltage | 200 - 208 V |
| Load capacity | 4992 VA |
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 46 mm |
| Height | 1829 mm |
| Weight | 8.5 kg |
| Packaging data | |
| Package weight | 10 kg |
| Package width | 165 mm |
| Package depth | 124 mm |
| Package height | 2040 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
