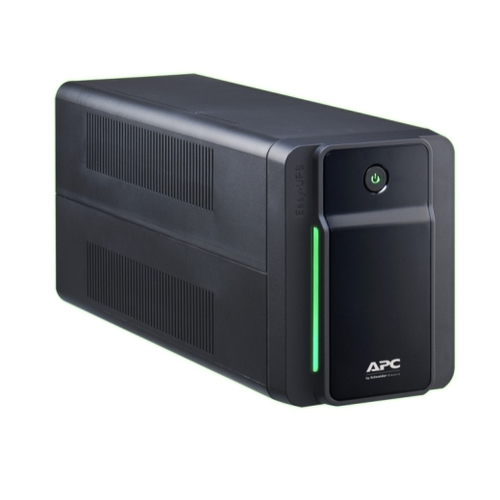

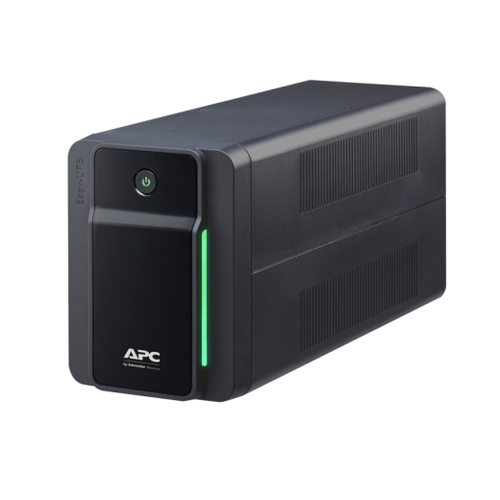

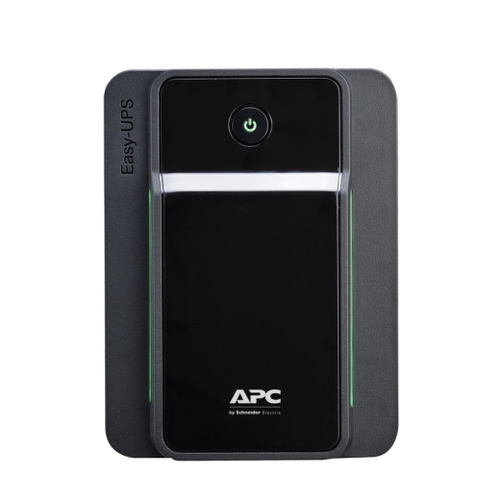

APC BVX900LI-GR uninterruptible power supply (UPS) Line-Interactive 0.9 kVA 480 W 2 AC outlet(s)
- Brand
- APC HW
- Product code
- BVX900LI-GR
- SKU
- AMQG2F61H9183
- EAN/GTIN
- 731304404590
- Line-Interactive
- 0.9 kVA 480 W
- Waveform: Sine
- 2 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Compact Black
Product Info
Access monitoring
Detect access by unauthorized personnel via door switch.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design

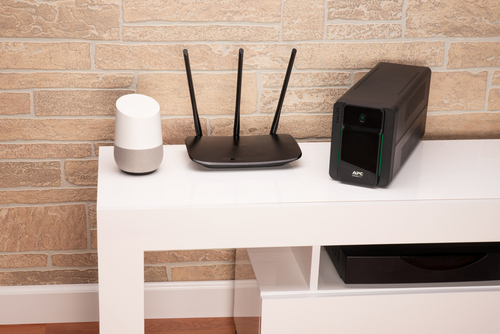

Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable
Provides temporary battery power when the utility power is out.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.9 kVA |
| Output power | 480 W |
| Waveform | Sine |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.5 Hz |
| Output voltage regulation | 10% |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 273 J |
| Response time | 6 ms |
| Input power factor | 0.53 |
| Noise level | 40 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm |
| Ports & interfaces | |

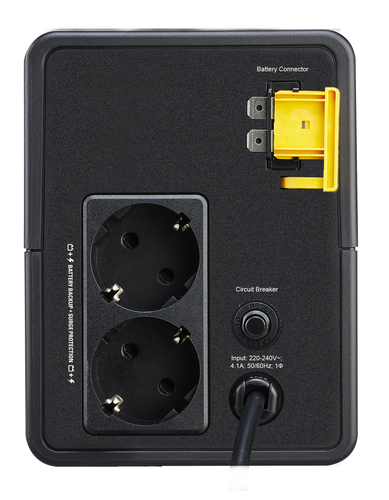

| AC outlet types | Type F |
| Power plug | Type F |
| AC outlets quantity | 2 AC outlet(s) |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Battery life (max) | 2 year(s) |
| Battery recharge time | 8 h |
| Cold start | Yes |
| Design | |
| Form factor | Compact |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Certification | CB, CE, EN/IEC 62040-1, EN/IEC 62040-2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 355 mm |
| Height | 160 mm |
| Weight | 6 kg |
| Package width | 197 mm |
| Package depth | 430 mm |
| Package height | 250 mm |
| Package weight | 6.5 kg |
| Packaging data | |
| Cables included | Input power cable |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
