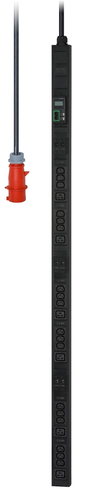

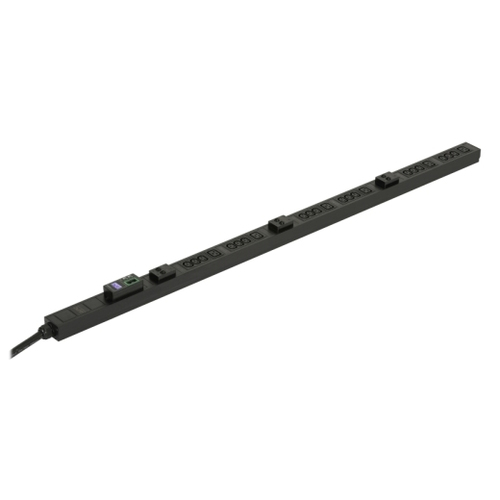

APC Easy Rack PDU, Metered, 0U, 3 Phase, 22kW, 230V, 32A, 18 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet
- Brand
- APC HW
- Product code
- EPDU1232M
- SKU
- F6ODJU4P8SYY7
- EAN/GTIN
- 731304405115
- Includes: Installation guide, Toolless Mounting Kit, Vertical mounting brackets
Product Info
Easy Metered Rack Power Distribution Units (PDU) provide real-time remote
monitoring and power management of connected loads in server rack and network
rack solutions. Going beyond the average power strip, Easy PDU offers User-defined
alarms to warn of potential circuit overloads before critical IT failures occur.
Easy Metered Rack Power Distribution Units (PDU) provide real-time remote monitoring and power management of connected loads in server rack and network rack solutions. Going beyond the average power strip, Easy PDU offers User-defined alarms to warn of potential circuit overloads before critical IT failures occur.
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Zero U Rack Mounting Abilities
Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.
| Design | |
|---|---|
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |

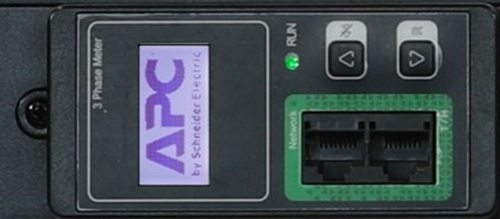

| Display | LCD |
| On/off switch | No |
| Ports & interfaces | |
| AC outlets quantity | 32 AC outlet(s) |
| Power plug | C13 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Daisy chain | No |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, EAC, RCM, TÜV |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 22080 VA |
| Maximum power | 22000 W |
| Weight & dimensions | |
| Width | 62 mm |
| Depth | 44 mm |
| Height | 1506 mm |
| Weight | 4.64 kg |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
