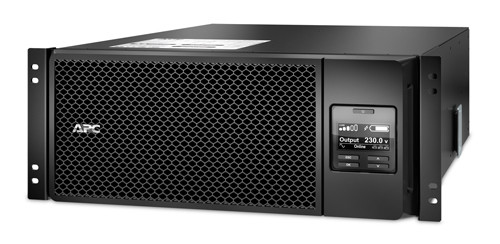

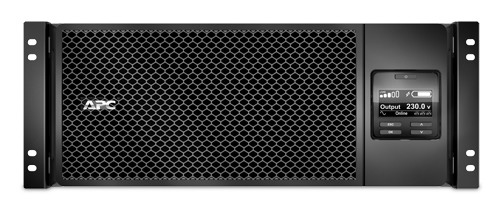

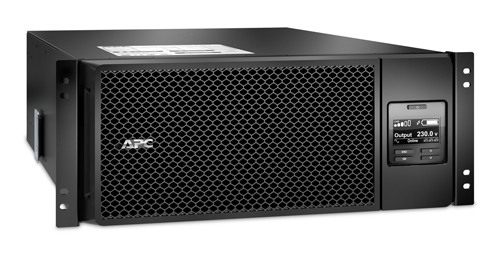

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine
- Brand
- APC HW
- Product code
- SRT6KRMXLIM
- SKU
- CK9TGSUUM76FP
- EAN/GTIN
- 731304320838
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Sine
- 13 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
Product Info
10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

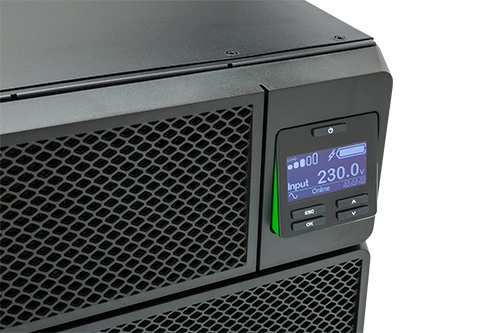

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
SmartSlot
Customize UPS capabilities with management cards.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Serial connectivity
Provides management of the UPS via a serial port.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Temperature voltage compensation | Yes |
| Ports & interfaces | |

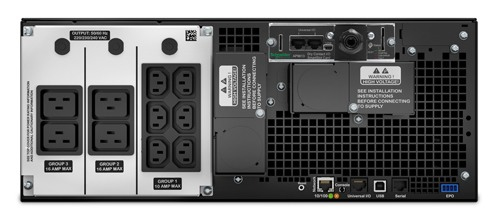

| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Power plug | Terminal |
| AC outlets quantity | 13 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 4U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Certification | CE, EAC, RCM, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 719 mm |
| Height | 174 mm |
| Weight | 60 kg |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 370 mm |
| Packaging data | |
| Package volume | 67000 cm³ |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
