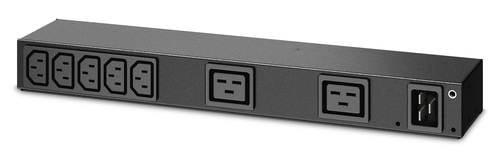

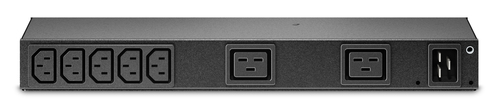

APC AP6120A power distribution unit (PDU)
APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black
- Brand
- APC HW
- Product code
- AP6120A
- SKU
- Y3XIKJ892T8D3
- EAN/GTIN
- 731304327851
- Single-phase Basic 0U/1U Black
- 7 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
€129.33
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
APC AP6120A. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 7 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Nominal input voltage: 100-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: UL/C-UL, VDE, CE. Width: 4.36 mm, Depth: 9.29 mm, Height: 38.8 mm
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 7 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Certification | UL/C-UL, VDE, CE |
| Power | |
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 100-240 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 4.36 x 9.29 x 38.81 mm |
| Weight | 1.56 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
