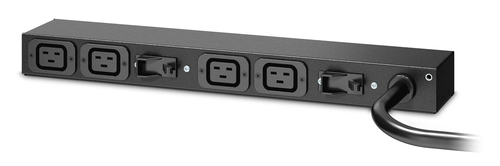

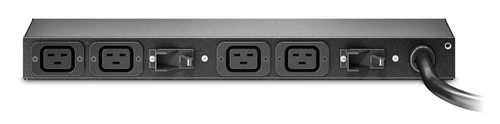

APC AP6032A power distribution unit (PDU)
APC AP6032A power distribution unit (PDU) 4 AC outlet(s) 0U/1U Black
- Brand
- APC HW
- Product code
- AP6032A
- SKU
- V4UKDPDRLE976
- EAN/GTIN
- 731304327820
- Single-phase Basic 0U/1U Black
- 4 AC outlet(s) C19 coupler
- 7680 W
€227.45
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C19 coupler |
| Features | |
| Cable length | 3.65 m |
| Certification | VDE, CE |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 200-240 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum power | 7680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 4.36 x 9.29 x 43.81 mm |
| Weight | 2.78 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
