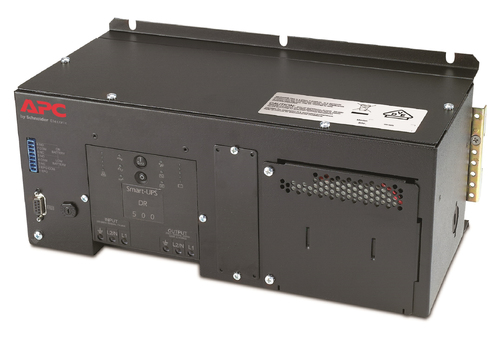

APC SUA500PDRI uninterruptible power supply (UPS)

SUA500PDRI - 0731304290841

APC DIN Rail - Panel Mount UPS-without Battery-500VA 230V

Brand: APC HW
Product code: SUA500PDRI
SKU: 5Q2RCP9R4VPX5
EAN/GTIN: 0731304290841

Line-Interactive
0.5 kVA 325 W
Rackmount Black

€537.84 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

DIN Rail - Panel Mount UPS-without Battery-500VA 230V

APC DIN Rail - Panel Mount UPS-without Battery-500VA 230V. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 325 W. Form factor: Rackmount, Product colour: Black. Compliance certificates: RoHS, Certification: CE, VDE. Width: 362 mm, Depth: 171 mm, Height: 148 mm. Package width: 297 mm, Package depth: 481 mm, Package height: 297 mm

Specifications

Features

UPS topology Line-Interactive

Output power capacity 0.5 kVA

Output power 325 W

Input operation voltage (min) 151 V

Input operation voltage (max) 302 V

Input frequency 47/53 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Surge energy rating 540 J

Efficiency 94%

Output voltage Total Harmonic Distortion (THD) 5%

Noise level 55 dB

Surge protection Yes

Ports & interfaces

RS-232 ports 1

Battery

Number of batteries supported 1

Design

Form factor Rackmount

Product colour Black

Certification CE, VDE

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates RoHS

Weight & dimensions

Width 362 mm

Depth 171 mm

Height 148 mm

Package width 297 mm

Package depth 481 mm

Package height 297 mm

Packaging data

Manual Yes

Logistics data

Harmonized System (HS) code 85078000
