APC Smart-UPS On-Line uninterruptible power supply (UPS)

SRT10KRMXLI - 731304304265

APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC

Brand: APC HW
Product code: SRT10KRMXLI
SKU: IVZKZQ5AT977D
EAN/GTIN: 731304304265

Double-conversion (Online)
10 kVA 10000 W
Waveform: Sine
10 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black

€10121.61 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC

APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1805 VAh, Typical backup time at full load: 3.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Compliance certificates: RoHS, Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

APC Smart-UPS On-Line,10 kW /10 kVA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 6 U

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 10 kVA

Output power 10000 W

Waveform Sine

Input operation voltage (min) 100 V

Input operation voltage (max) 476 V

Input frequency 40 - 70 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Output frequency regulation 50/60 Hz

Surge energy rating 480 J

Number of output phases 1

Efficiency 94.6%

Crest factor 3:1

Emergency Power Off (EPO) Yes

Output voltage Total Harmonic Distortion (THD) 3%

Noise level 55 dB

Surge protection Yes

Audible alarm(s) Yes

Auto-restart Yes

Ports & interfaces

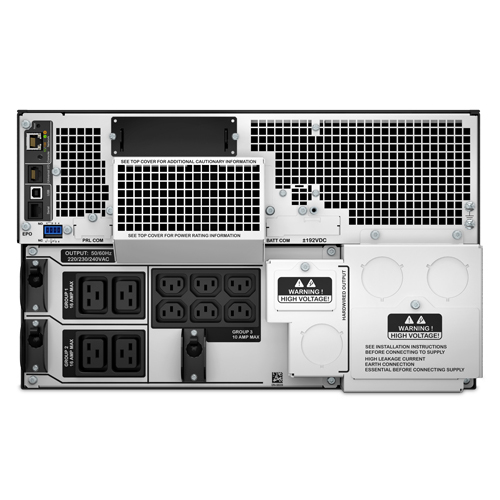

AC outlet types C13 coupler, C19 coupler

Power plug Terminal

AC outlets quantity 10 AC outlet(s)

Number of output IEC jumpers 3

USB port Yes

Serial interface Yes

Serial interface type RJ-45

SmartSlot Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 1805 VAh

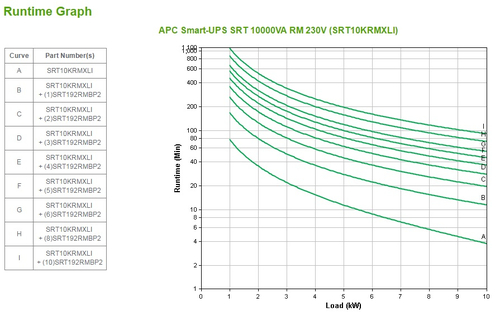

Typical backup time at full load 3.8 min

Typical backup time at half load 11.5 min

Battery life (max) 5 year(s)

Battery recharge time 3 h

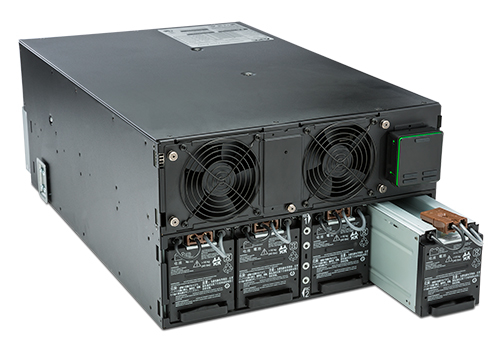

Hot-swap battery Yes

Automatic battery test Yes

Cold start Yes

Design

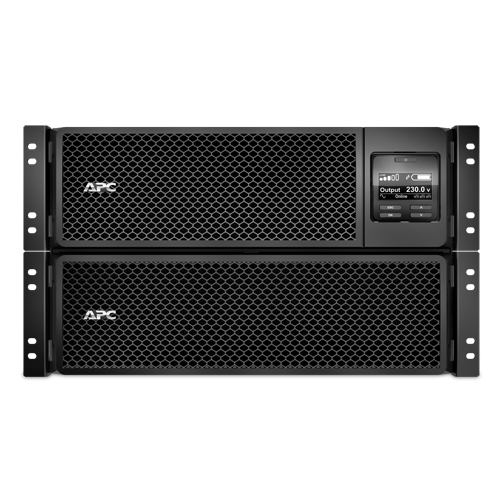

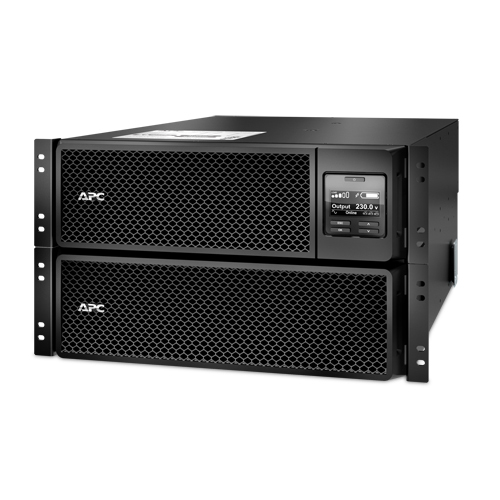

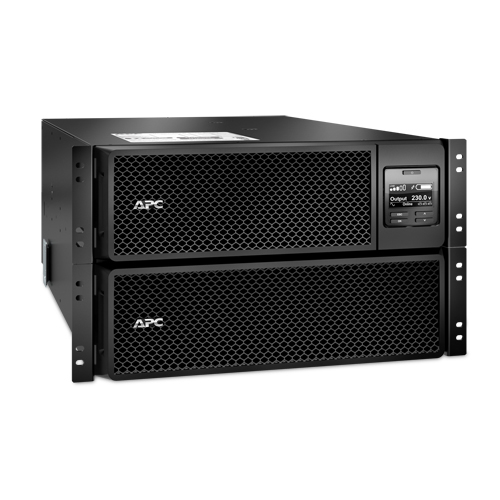

Form factor Rackmount/Tower

Rack capacity 6U

Product colour Black

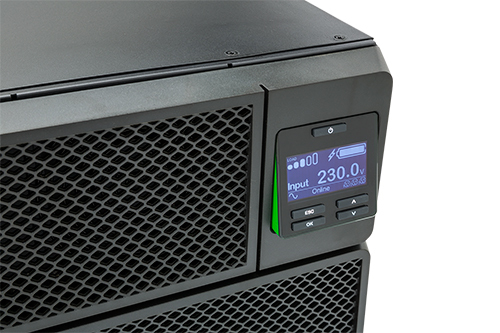

Display type LCD

LED indicators Yes

Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates RoHS, ENERGY STAR

Weight & dimensions

Width 432 mm

Depth 715 mm

Height 263 mm

Weight 111.8 kg

Package width 600 mm

Package depth 1000 mm

Package height 461 mm

Package weight 130 kg

Packaging data

Rack mount kit Yes

Bracket Yes

Cables included USB cable

Temperature sensor Yes

Quick installation guide Yes

Warranty card Yes

Software CD Yes

Logistics data

Harmonized System (HS) code 85078000

Other features

Interface RJ-45 10/100 Base-T

Nominal output voltage 230 V

Nominal input voltage 230 V

Packaging content Web/SNMP Management Card
