APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 10x IEC C13 outlets, AVR, LCD, User Replaceable Battery
- Brand
- APC HW
- Product code
- BR1500GI
- SKU
- RAPAKCU43W6TL
- EAN/GTIN
- 731304268741
- Line-Interactive
- 1.5 kVA 865 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Black
Product Info
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Extendable Run Time
Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Output power | 865 W |
| Waveform | Sine |
| Input operation voltage (min) | 156 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 441 J |
| Hold time (min) | 10 ms |
| Hold time (max) | 12 ms |
| Efficiency | 98.9% |
| Crest factor | 3:1 |
| Noise level | 45 dB |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Ports & interfaces | |

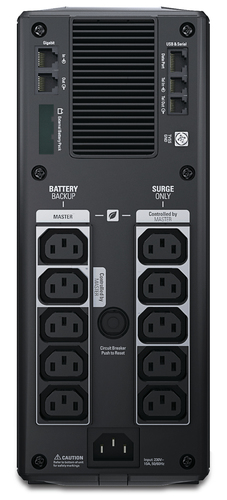

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 187 VAh |

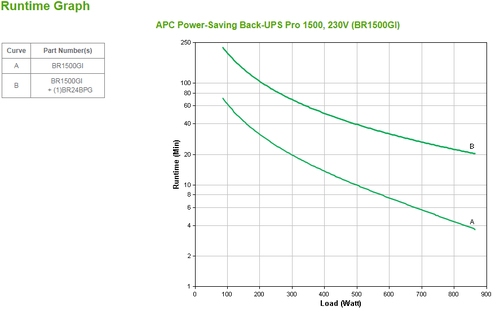

| Typical backup time at full load | 3.7 min |
| Typical backup time at half load | 12.4 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 8 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC124 |
| Design | |
| Product colour | Black |
| Display type | LCD |
| Certification | A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 9000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Weight & dimensions | |
| Width | 112 mm |
| Depth | 380 mm |
| Height | 301 mm |
| Weight | 12.7 kg |
| Package width | 238 mm |
| Package depth | 488 mm |
| Package height | 387 mm |
| Package weight | 14.3 kg |
| Packaging data | |
| Cables included | Phone (RJ-11), USB cable |
| Manual | Yes |
| Warranty card | Yes |
| Software CD | Yes |

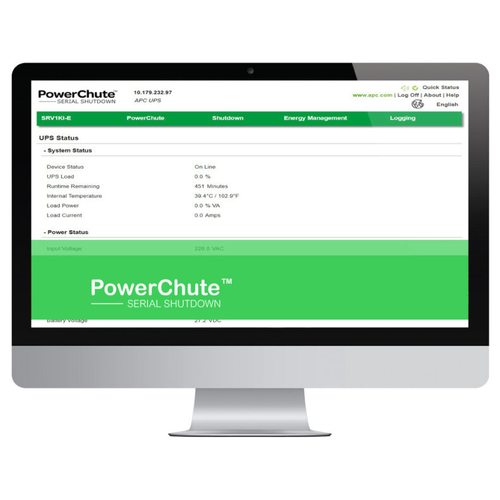

| Bundled software | PowerChute Personal Edition |
| Logistics data | |
| Products per pallet | 20 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | 1x Detachable IEC Power Cord |
