APC Service Bypass Panel - 200/208/240V power distribution unit (PDU)
APC Service Bypass Panel - 200/208/240V power distribution unit (PDU) Black
- Brand
- APC HW
- Product code
- SBP5000RMT2U
- SKU
- OYNQZD0QOBKNN
- EAN/GTIN
- 731304212584
€1107.0
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.

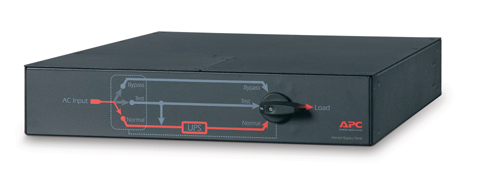

Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | NEMA L6-30P |

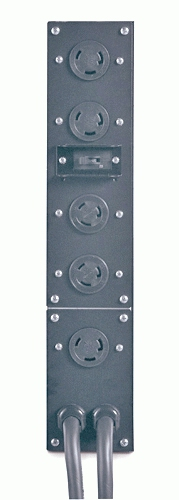

| Output connections | 2x NEMA L6-20R 2x NEMA L6-30R |
| Features | |
| Cable length | 3.05 m |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Load capacity | 5000 VA |
| Maximum input current per phase | 24 A |
| Maximum total current draw per phase | 24 A |
| Weight & dimensions | |
| Dimensions (WxDxH) | 432 x 660 x 89 mm |
| Weight | 13.6 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 610 x 991 x 203 mm |
| Package weight | 24.5 kg |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
