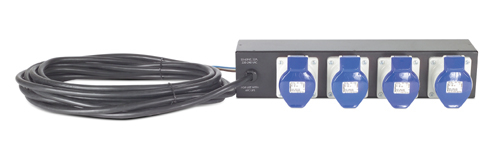

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power distribution unit (PDU)

AP7586 - 731304224198

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power distribution unit (PDU) 4 AC outlet(s) Black

Brand: APC HW
Product code: AP7586
SKU: G0XFZ21TBMA95
EAN/GTIN: 731304224198

Basic 2U Black
4 AC outlet(s)
7680 W

€887.91 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

RACK PDU BASIC 2U 32A 230V (4) IEC 309-32

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32. PDU types: Basic, Rack capacity: 2U, Mounting: Horizontal. AC outlets quantity: 4 AC outlet(s), Input connection type: Hard Wire 3-wire, Output connections: (4) IEC 309 . Cable length: 8.53 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Output voltage: 230 V. Width: 437 mm, Depth: 89 mm, Height: 89 mm

The most mounting options in the market.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.

Specifications

Design

PDU types Basic

Rack capacity 2U

Mounting Horizontal

Product colour Black

Ports & interfaces

AC outlets quantity 4 AC outlet(s)

I/O ports Hard Wire 3-wire (4) IEC 309

Input connection type Hard Wire 3-wire

Output connections (4) IEC 309

Features

Cable length 8.53 m

Power

Nominal input voltage 230 V

Nominal output voltage 230 V

Output voltage 230 V

Load capacity 7680 VA

Maximum input current per phase 32 A

Maximum total current draw per phase 32 A

Maximum power 7680 W

Weight & dimensions

Dimensions (WxDxH) 437 x 89 x 89 mm

Weight 4.09 kg

Packaging data

Package dimensions (WxDxH) 521 x 521 x 152 mm

Package weight 5 kg

Operational conditions

Operating temperature (T-T) 0 - 45 °C

Storage temperature (T-T) -25 - 65 °C

Operating relative humidity (H-H) 0 - 45%

Storage relative humidity (H-H) 0 - 95%
