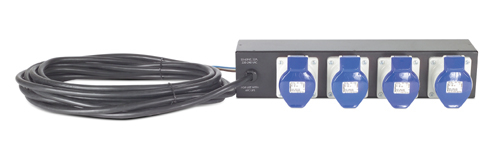

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power distribution unit (PDU)
APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power distribution unit (PDU) 4 AC outlet(s) Black
- Brand
- APC HW
- Product code
- AP7586
- SKU
- G0XFZ21TBMA95
- EAN/GTIN
- 731304224198
- Basic 2U Black
- 4 AC outlet(s)
- 7680 W
€882.27
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The most mounting options in the market.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.
| Design | |
|---|---|
| PDU types | Basic |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| I/O ports | Hard Wire 3-wire (4) IEC 309 |
| Input connection type | Hard Wire 3-wire |
| Output connections | (4) IEC 309 |
| Features | |
| Cable length | 8.53 m |
| Power | |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 7680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 437 x 89 x 89 mm |
| Weight | 4.09 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 521 x 521 x 152 mm |
| Package weight | 5 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 45% |
| Storage relative humidity (H-H) | 0 - 95% |
