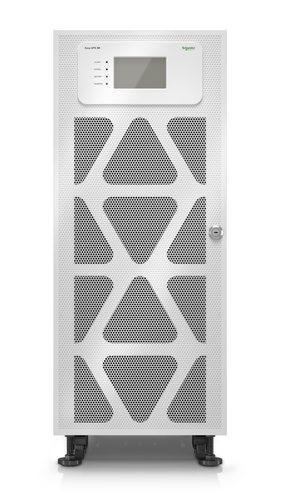

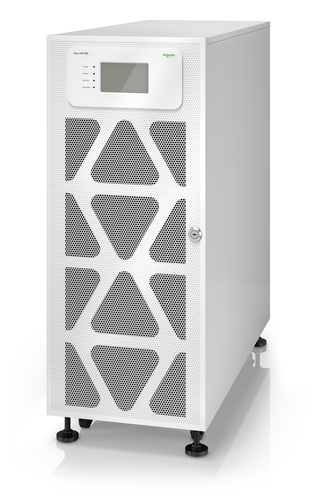

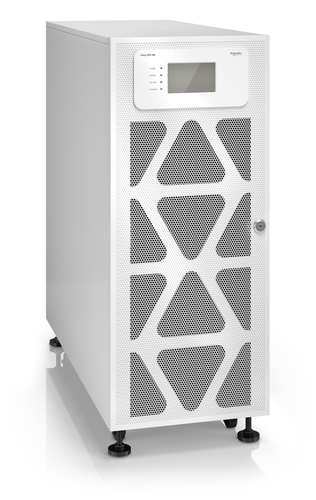

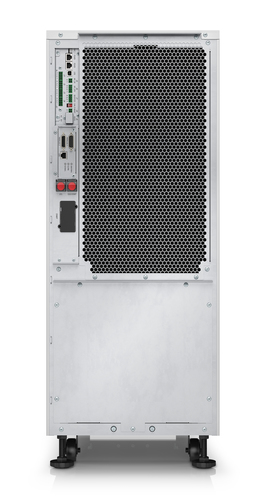

APC E3MUPS100KHS uninterruptible power supply (UPS)

E3MUPS100KHS - 731304363194

APC E3MUPS100KHS uninterruptible power supply (UPS) Double-conversion (Online) 100 kVA 100000 W

Brand: APC HW
Product code: E3MUPS100KHS
SKU: SDBE7KVHWSLF1
EAN/GTIN: 731304363194

Double-conversion (Online)
100 kVA 100000 W
Waveform: Sine
Tower White

€14858.62 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Easy UPS 3M 100kVA 400V 3:3 UPS for external batteries, Start-up 5x8

APC E3MUPS100KHS. UPS topology: Double-conversion (Online), Output power capacity: 100 kVA, Output power: 100000 W. Form factor: Tower, Product colour: White, Display type: LCD. Certification: EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4. Width: 360 mm, Depth: 850 mm, Height: 915 mm. Package width: 475 mm, Package depth: 965 mm, Package height: 1140 mm

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 100 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service.

Includes: Dust filter, Installation guide, Start-Up Service.

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 100 kVA

Output power 100000 W

Waveform Sine

Input operation voltage (min) 342 V

Input operation voltage (max) 477 V

Input frequency 40/70 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 177 A

Number of input phases 3

Number of output phases 3

Efficiency 94.8%

Input power factor 0.99

Crest factor 3:1

ECO mode Yes

Output voltage Total Harmonic Distortion (THD) 3%

Noise level 65 dB

Audible alarm(s) Yes

Design

Form factor Tower

Product colour White

Display type LCD

LED indicators Yes

International Protection (IP) code IP20

Certification EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -25 - 55 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 1476.3 m

Non-operating altitude 0 - 15000 m

Weight & dimensions

Width 360 mm

Depth 850 mm

Height 915 mm

Weight 145 kg

Package width 475 mm

Package depth 965 mm

Package height 1140 mm

Package weight 169 kg

Logistics data

Harmonized System (HS) code 85078000
