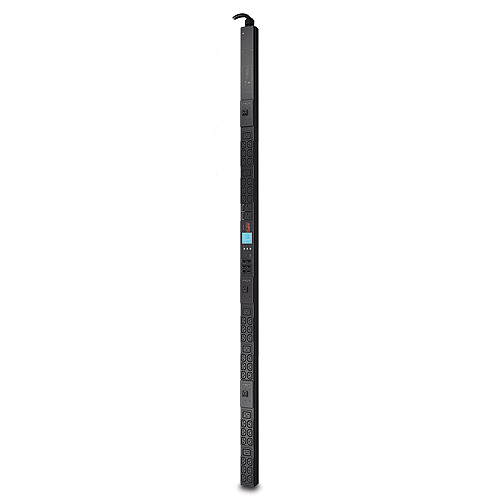

APC AP8865 power distribution unit (PDU) Black
- Brand
- APC HW
- Product code
- AP8865
- SKU
- CQ0Z2NKDNT8Q2
- EAN/GTIN
- 731304277064
Product Info
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | NEMA L21-30P |
| Output connections | 36x IEC 320 C13 6x IEC 320 C19 2x NEMA 5-20R |
| Features | |
| Cable length | 1.83 m |
| Certification | CSA C22.2 No. 60950,UL 60950-1 |
| Power | |
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 208 V |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 30 A |
| Weight & dimensions | |
| Dimensions (WxDxH) | 56 x 44 x 1791 mm |
| Weight | 7.56 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 162 x 107 x 2000 mm |
| Package weight | 9.2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
