APC AP9624 interface cards/adapter
APC AP9624 interface cards/adapter Internal Serial
- Brand
- APC HW
- Product code
- AP9624
- SKU
- HH00UVKQ9BKG0
- EAN/GTIN
- 731304314974
- Internal
- Host interface: Serial
- Output interface: Serial
€305.05
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info

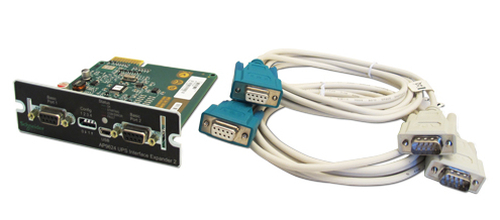

UPS Management SmartSlot offer with serial shutdown support of up to two additional devices such as Servers and Network Storage Devices.
APC AP9624. Host interface: Serial, Output interface: Serial. Certification: C-tick, CE, EN 55022, EN 55024, FCC, IEC 62040-2. Width: 121 mm, Depth: 114 mm, Height: 38 mm. Package width: 235 mm, Package depth: 165 mm, Package height: 51 mm
UPS Management SmartSlot offer with serial shutdown support of up to two additional devices such as Servers and Network Storage Devices.
Includes: RS-232 configuration cable, User Manual, Warranty card
- Compatible with all Smart-UPS as well as the Symmetra Power Array, LX and RM UPS ranges.
- Supports graceful shutdown for up to two additional devices such as servers and network storage devices connected serially.
- Supports graceful shutdown of additional devices connected to the two simple signaling ports using PowerChute Business Edition.
- The UPS Interface Expander 2 firmware can be upgraded using the USB mini B port
- This software supports numerous operating systems and processors. For further information, please
| Ports & interfaces | |
|---|---|
| Host interface | Serial |
| Output interface | Serial |
| Design | |
| Internal | Yes |
| Certification | C-tick, CE, EN 55022, EN 55024, FCC, IEC 62040-2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 121 mm |
| Depth | 114 mm |
| Height | 38 mm |
| Weight | 70 g |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 165 mm |
| Package height | 51 mm |
| Package weight | 410 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
