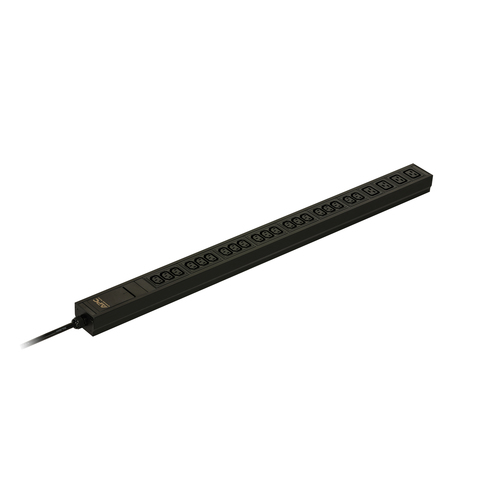

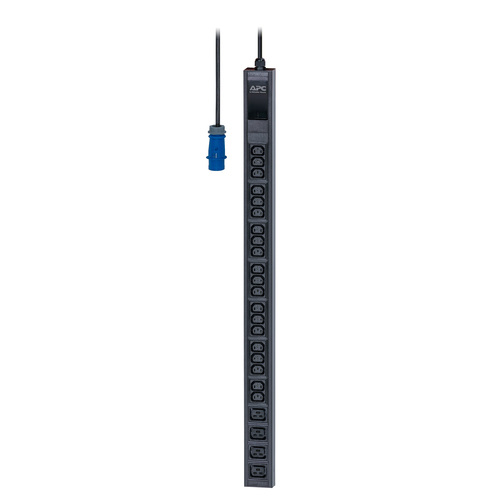

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
- Brand
- APC HW
- Product code
- EPDU1116B
- SKU
- 1SIZCY2XNOFEQ
- EAN/GTIN
- 731304405016
- Single-phase Basic 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
Product Info
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.
Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Zero U Rack Mounting Abilities
Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Cost Savings
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| On/off switch | No |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 200/208/230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Weight & dimensions | |
| Width | 62 mm |
| Depth | 44 mm |
| Height | 902 mm |
| Weight | 2.2 kg |
| Packaging data | |
| Package weight | 2.98 kg |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1320 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 9000 m |
