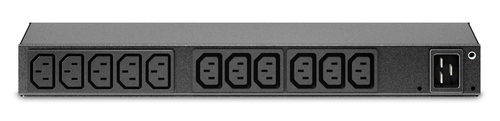

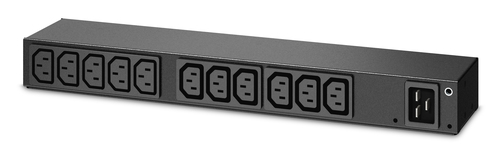

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
- Brand
- APC HW
- Product code
- AP6020A
- SKU
- CVOQU77JOMN1D
- EAN/GTIN
- 731304327806
- Single-phase Basic 0U/1U Black
- 13 AC outlet(s) C13 coupler
- 3680 W
Product Info
AP6020AFeatures
- Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
- Reliable rack power distribution
- Includes : Installation guide , Safety guide
Marketing Features
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 13 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Output connections | IEC 320 C13 |
| Features | |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Power | |
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 44 x 93 x 388 mm |
| Weight | 1.5 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 210 x 76 x 436 mm |
| Package weight | 2.02 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Technical details | |
| Sustainability certificates | RoHS |
