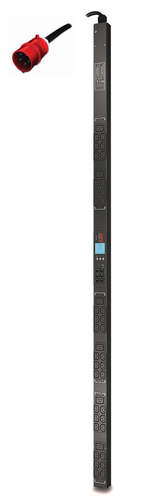

APC AP8881 power distribution unit (PDU) 42 AC outlet(s) 0U Black
- Brand
- APC HW
- Product code
- AP8881
- SKU
- TSV7DRJKKKCTX
- EAN/GTIN
- 731304277071
- Metered 0U Black
- 42 AC outlet(s) C13 coupler, C19 coupler
- 11000 W
Product Info
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Design | |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |

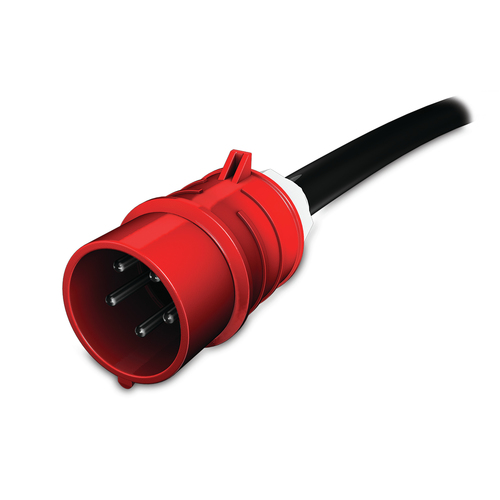

| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E |
| Output connections | 36x IEC 320 C13 6x IEC 320 C19 |
| Features | |
| Cable length | 1.83 m |
| Certification | CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Load capacity | 11040 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 11000 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 56 x 44 x 1791 mm |
| Weight | 6.38 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
