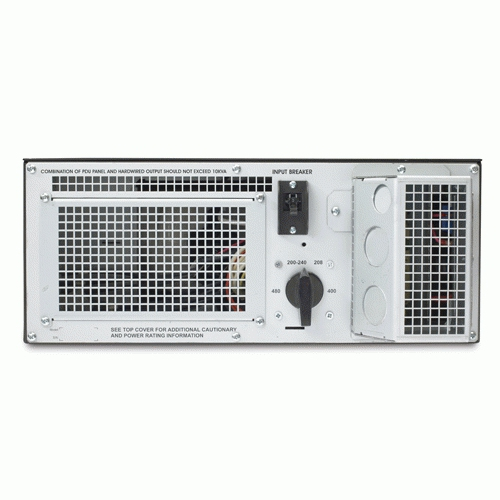

APC APTF10KW01 power distribution unit (PDU)
APC APTF10KW01 power distribution unit (PDU) Black
- Brand
- APC HW
- Product code
- APTF10KW01
- SKU
- Y2DKO0T604ON8
- EAN/GTIN
- 731304242208
€3271.58
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Transformer for Step-down or Step-up or Isolation
Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
Heavy duty design
The Vault Lock’s heavy duty hardened steel construction provides the highest degree of portable tampering protection available on the market.
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G) |
| Output connections | 1x Hard Wire 3-wire (H N + G) |
| Features | |
| Certification | C-tick,CE,CSA,EN 55022 Class A,EN 55024,EN 61000-3-2,EN 61000-3-3,GOST,UL Listed,VDE |
| Power | |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Load capacity | 10000 VA |
| Maximum input current per phase | 60 A |
| Maximum total current draw per phase | 60 A |
| Weight & dimensions | |
| Dimensions (WxDxH) | 432 x 749 x 175 mm |
| Weight | 100 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
