• InfiniteFix Product Image

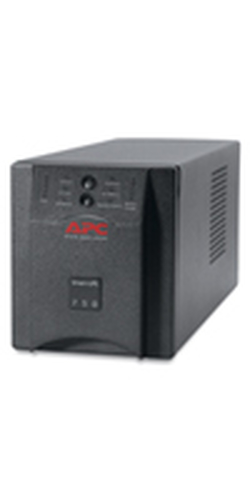

APC Smart UPS uninterruptible power supply (UPS)

APC Smart UPS 750VA 230V USB with UL approval


Brand
APC HW
Product code
SUA750IX38
SKU
HVLZY15HV5I0Z
EAN/GTIN
731304253365
€454.74 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to
battery temperature.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Cold-start capable
Provides temporary battery power when the utility power is out.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Generator Compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Network manageable
Provides remote management of the UPS over the network.

SmartSlot
Customize UPS capabilities with management cards.

Audible Alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial Connectivity
Provides management of the UPS via a serial port.

USB Connectivity
Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification
Warns when a battery is not available to provide backup power.

InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers
Enables a quick recovery from overload events.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.

Features
Output power capacity 0.75 kVA
Output power 500 W
Input frequency 50/60 Hz
Surge energy rating 340 J
Audible alarm(s) Yes
Battery
Typical backup time at full load 4.8 min
Typical backup time at half load 16.4 min
Battery recharge time 3 h
Hot-swap battery Yes
Design
Product colour Black
LED indicators Yes
Certification C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,GOST,IEC 60950,VDE
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Weight & dimensions
Weight 13.2 kg
Package weight 14.6 kg
Logistics data
Harmonized System (HS) code 85078000
Other features
Output connections 6 x IEC 320 C13 1 x IEC Jumpers
Input connection type IEC-320-C14 inlet
Dimensions (WxDxH) 137 x 358 x 157 mm
Nominal output voltage 230 V
Nominal input voltage 230 V
Package dimensions (WxDxH) 270 x 500 x 290 mm
