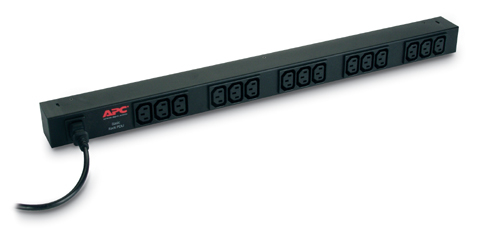

APC RACK PDU BASIC ZERO U 10A 230V power distribution unit (PDU) 15 AC outlet(s) 0U Black
- Brand
- APC HW
- Product code
- AP9568
- SKU
- 5BHJ7ED66RL1N
- EAN/GTIN
- 731304207054
- Single-phase Basic 0U Black
- 15 AC outlet(s) C13 coupler
- 2300 W
Product Info
Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13
Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities
Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit
Output:
Output Voltage(s) (main only) - 208, 230 V
Maximum Total Current Draw per Phase - 10 A
Output Connections - (15)IEC 320 C13
Input:
Nominal input voltage - 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C14
Cord Length - 6.5 feet ( 1.98 meters )
Acceptable Input Voltage - 200-240 VAC
Maximum Input Current per phase - 10.0 A
Load Capacity - 2300
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 15 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| I/O ports | Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14 |
| Features | |
| Cable length | 1.98 m |
| Power | |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum power | 2300 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 445 x 445 x 609.6 mm |
| Weight | 2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
