APC Smart-UPS On-Line uninterruptible power supply (UPS)

SURT20KRMXLI - 731304255710

APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets

Brand: APC HW
Product code: SURT20KRMXLI
SKU: 0GBK750XAOC5Y
EAN/GTIN: 731304255710

Double-conversion (Online)
20 kVA 16000 W
Waveform: Sine
8 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black

€16392.51 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets

APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 16000 W. AC outlet types: C19 coupler, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 3840 VAh, Typical backup time at full load: 4.9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Compliance certificates: RoHS, Certification: BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI

APC Smart-UPS RT, 16 kW / 20 kVA,Input 230V / Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 12 U.

Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card.

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 20 kVA

Output power 16000 W

Waveform Sine

Input frequency 40 - 70 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Output frequency regulation 50/60 Hz

Maximum current 115 A

Number of output phases 1

Efficiency 93.7%

Crest factor 3:1

Emergency Power Off (EPO) Yes

Noise level 59 dB

Surge protection Yes

Audible alarm(s) Yes

Auto-restart Yes

Ports & interfaces

AC outlet types C19 coupler

Power plug Terminal

AC outlets quantity 8 AC outlet(s)

Number of output IEC jumpers 2

Serial interface Yes

Serial interface type RS-232

Ethernet LAN (RJ-45) ports 1

Cabling technology 10/100Base-T

SmartSlot Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 3840 VAh

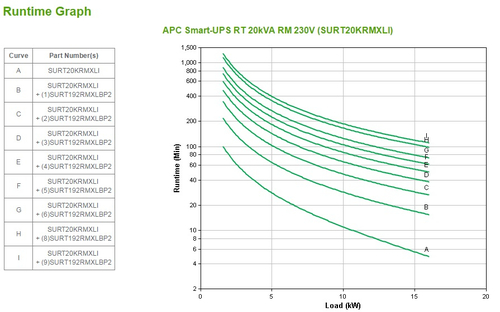

Typical backup time at full load 4.9 min

Typical backup time at half load 15.2 min

Battery life (max) 5 year(s)

Battery recharge time 2.5 h

Hot-swap battery Yes

Automatic battery test Yes

Cold start Yes

Design

Form factor Rackmount/Tower

Rack capacity 12U

Product colour Black

Display type LCD

LED indicators Yes

Certification BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates RoHS

Weight & dimensions

Width 432 mm

Depth 773 mm

Height 533 mm

Weight 247.7 kg

Package width 610 mm

Package depth 1003 mm

Package height 990 mm

Package weight 314.1 kg

Packaging data

Rack mount kit Yes

Cables included RS-232

Manual Yes

Software CD Yes

Logistics data

Products per pallet 1 pc(s)

Harmonized System (HS) code 85078000

Other features

Nominal output voltage 230 V

Nominal input voltage 230 V

Packaging content Web/SNMP Management Card
