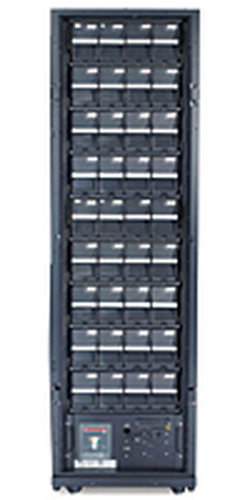

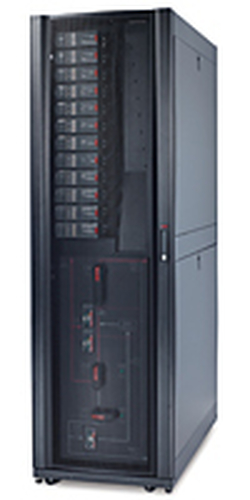

APC PDUM160H-B power distribution unit (PDU)
- Brand
- APC HW
- Product code
- PDUM160H-B
- SKU
- 522W83OUFDOF1
Product Info
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Smallest footprint
Minimizes your real estate expenses
Top and bottom cable entry (standard)
Flexibility that allows the customer to decide - and at no extra cost.
UL-listed Touch-safe backplane
Adding Power Distribution Modules requires no hot work; one trained user can safely add new modules without removing power to the existing PDU load
Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
| Ports & interfaces | |
|---|---|
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Output connections | 2x Hard Wire 5-wire (3PH + N + G) |
| Features | |
| Certification | CE, FCC 15 A |
| Power | |
| Nominal input voltage | 400 V |
| Load capacity | 160000 VA |
| Maximum input current per phase | 295 A |
| Weight & dimensions | |
| Dimensions (WxDxH) | 600 x 1070 x 1991 mm |
| Weight | 411.8 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 848 x 1210 x 2150 mm |
| Package weight | 444.6 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
