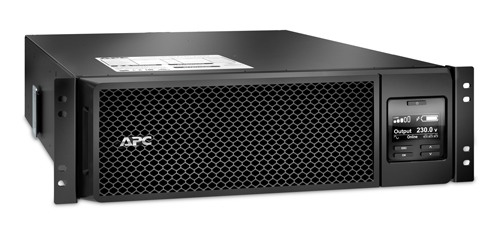

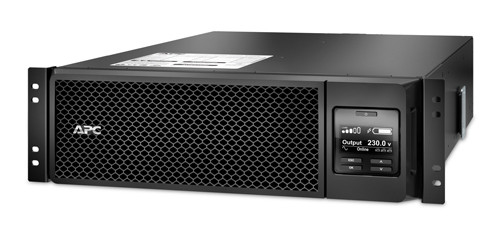

APC SRT5KRMXLIM uninterruptible power supply (UPS)
APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine
- Brand
- APC HW
- Product code
- SRT5KRMXLIM
- SKU
- CV3SB0ZR8H6WW
- EAN/GTIN
- 731304320821
- Double-conversion (Online)
- 5 kVA 4500 W
- Waveform: Pure sine
- 12 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Mini Tower Black
€5965.55
(Inc. VAT)
(Delivery 2-4 working days)
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 5 kVA |
| Output power | 4500 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Temperature voltage compensation | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Power plug | Terminal |
| AC outlets quantity | 12 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Mini Tower |
| Product colour | Black |

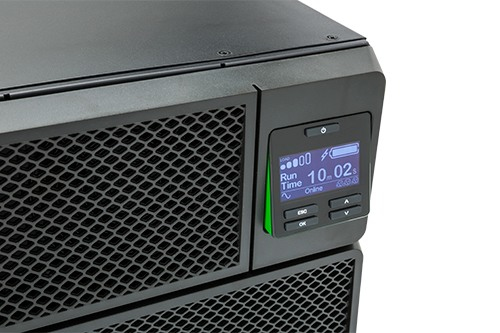

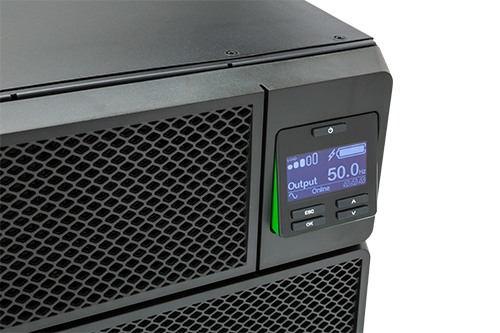

| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Certification | CE, DNV, EAC, RCM, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 719 mm |
| Height | 130 mm |
| Weight | 54.4 kg |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Package weight | 66.9 kg |
| Packaging data | |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Warranty card | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
