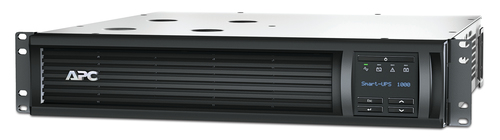

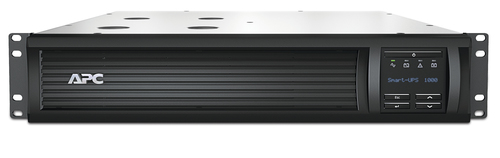

APC SMT1000RMI2UC uninterruptible power supply (UPS)
APC Smart-UPS SMT1000RMI2UC - 4x C13, USB, Rackmount 2U, SmartConnect, 1000VA
- Brand
- APC HW
- Product code
- SMT1000RMI2UC
- SKU
- WXT70Z43MK326
- EAN/GTIN
- 731304332985
- Line-Interactive
- 1 kVA 700 W
- Waveform: Sine
- 4 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
€964.93
(Inc. VAT)
(Delivery 2-4 working days)
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 459 J |
| Response time | 10 ms |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 45 dB |
| Surge protection | Yes |

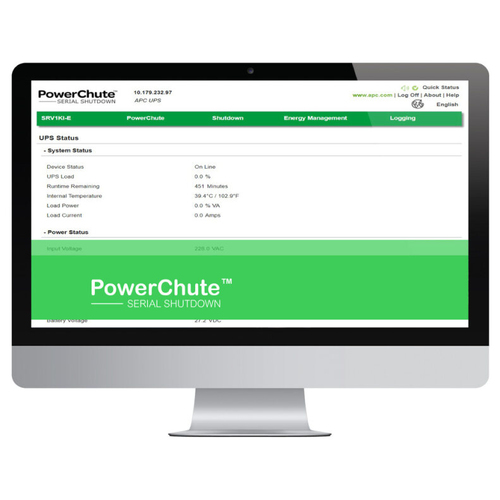

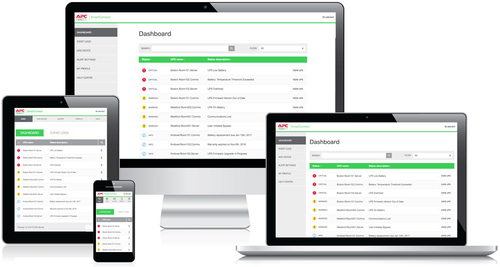

| Web-based management | Yes |
| Auto-restart | Yes |
| Temperature voltage compensation | Yes |
| Ports & interfaces | |

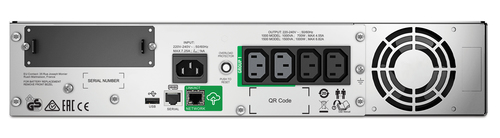

| AC outlet types | C13 coupler |
| AC outlets quantity | 4 AC outlet(s) |

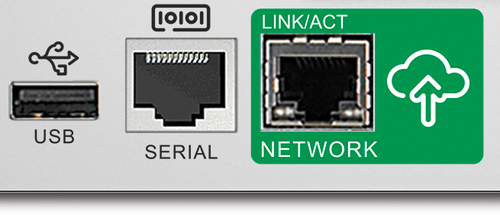

| USB port | Yes |
| USB port type | USB Type-A |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery life (max) | 6 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC132 |
| Design | |

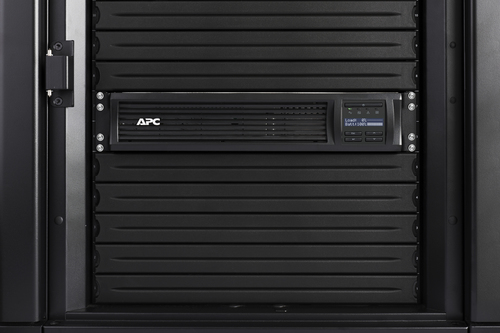

| Form factor | Rackmount |
| Rack capacity | 2U |
| Product colour | Black |

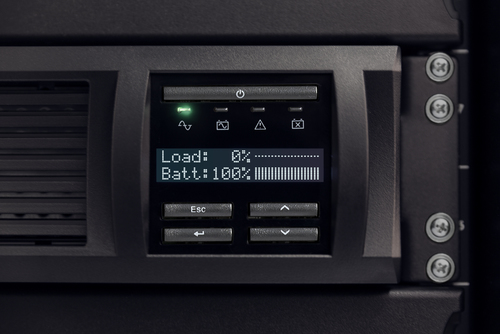

| Display type | LCD |
| LED indicators | Yes |
| Certification | EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | Green Premium, RoHS |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 477 mm |
| Height | 86 mm |
| Weight | 22.5 kg |
| Package width | 594 mm |
| Package depth | 603 mm |
| Package height | 251 mm |
| Package weight | 31.4 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Software CD | Yes |
| Logistics data | |
| Products per pallet | 8 pc(s) |
| Harmonized System (HS) code | 85078000 |
