APC BR650MI uninterruptible power supply (UPS)

Features

UPS topology Line-Interactive

Output power capacity 0.65 kVA

Output power 390 W

Waveform Sine

Input operation voltage (min) 176 V

Input operation voltage (max) 294 V

Input frequency 50/60 Hz

Output frequency 50/60 Hz

Automatic Voltage Regulation (AVR) Yes

Maximum current 10 A

Response time 12 ms

ECO mode Yes

Noise level 45 dB

Surge protection Yes

Surge protection features Network

Audible alarm(s) Yes

Audible alarm modes Alarm when on battery, Low battery alarm, Overload alarm

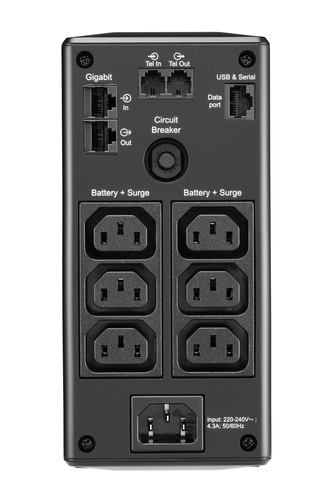

Ports & interfaces

AC outlet types C13 coupler

Power plug C14 coupler

AC outlets quantity 6 AC outlet(s)

USB port Yes

USB 2.0 ports quantity 1

Ethernet LAN (RJ-45) ports 2

Cabling technology 10/100/1000Base-T(X)

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery life (max) 5 year(s)

Battery recharge time 12 h

Hot-swap battery Yes

Automatic battery test Yes

Cold start Yes

Design

Form factor Tower

Cable length 1.83 m

Cooling type Passive

Product colour Black

Display type LCD

LED indicators Yes

Certification A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates Green Premium

Weight & dimensions

Width 91 mm

Depth 310 mm

Height 190 mm

Weight 6.4 kg

Package width 440 mm

Package depth 143 mm

Package height 255 mm

Package weight 7.4 kg

Packaging data

Cables included USB cable

Manual Yes

Logistics data

Harmonized System (HS) code 85078000

Other features

Nominal output voltage 230 V

Nominal input voltage 230 V
