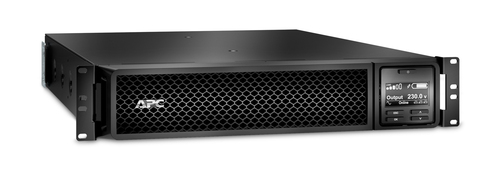

APC Smart-UPS On-Line SRT3000RMXLI-NC - 3000VA, 8x C13 & 2x C19, rackmount, NMC
- Brand
- APC HW
- Product code
- SRT3000RMXLI-NC
- SKU
- J2KVIZGFFYAGB
- Double-conversion (Online)
- 3 kVA 2700 W
- Waveform: Sine
- Sealed Lead Acid (VRLA)
- Rackmount Black
Product Info
A versatile UPS developed for unstable power conditions worldwide
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 340 J |
| Efficiency | 92% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Battery replacement |
| Auto-restart | Yes |
| Ports & interfaces | |

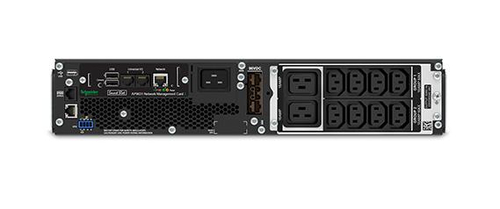

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 505 VAh |

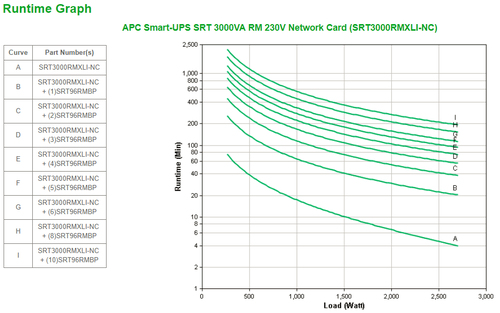

| Typical backup time at full load | 4 min |
| Typical backup time at half load | 11.8 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |

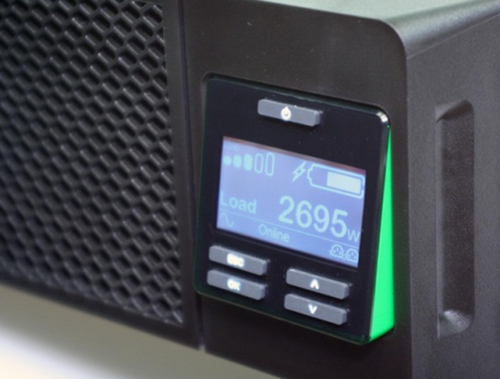

| Display type | LCD |
| LED indicators | Battery replacement |
| International Protection (IP) code | IP20 |
| Certification | CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | Green Premium, RoHS |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 635 mm |
| Height | 85 mm |
| Weight | 31.3 kg |
| Package width | 599 mm |
| Package depth | 871 mm |
| Package height | 246 mm |
| Package weight | 39.3 kg |
| Packaging data | |
| Quick installation guide | Yes |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 230 V |
