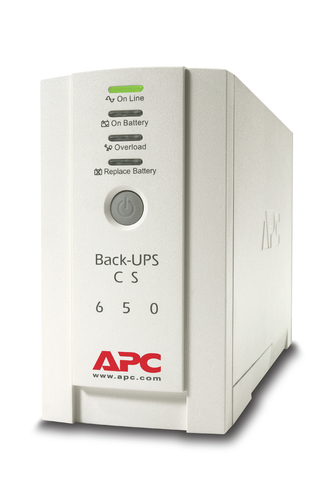

APC Back-UPS uninterruptible power supply (UPS)

BK650EI - 731304219781

APC Back-UPS BK650EI - 650VA, 4x C13 output, USB

Brand: APC HW
Product code: BK650EI
SKU: 302A717FH9SK1
EAN/GTIN: 731304219781

Standby (Offline)
0.65 kVA 400 W
Waveform: Sine
4 AC outlet(s)
Sealed Lead Acid (VRLA) 12 V 9 Ah
Tower Beige

€203.3 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

APC Back-UPS BK650EI - 650VA, 4x C13 output, USB

APC Back-UPS BK650EI - 650VA, 4x C13 output, USB. UPS topology: Standby (Offline), Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: C13 coupler, IEC 60320, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery capacity: 111 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.8 m. Compliance certificates: RoHS, Certification: A-tick, C-tick, CE, GOST, NEMKO

The re-invention of the most relied upon desktop UPS in history: the Back-UPS!

The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

Specifications

Features

UPS topology Standby (Offline)

Output power capacity 0.65 kVA

Output power 400 W

Waveform Sine

Input operation voltage (min) 160 V

Input operation voltage (max) 286 V

Input frequency 50/60 Hz

Output frequency regulation 47 - 63 Hz

Surge energy rating 310 J

Hold time (min) 6 ms

Hold time (max) 10 ms

Efficiency 98.9%

Noise level 45 dB

Surge protection Yes

Surge protection features Digital Subscriber Line (DSL), Fax, Modem, Telephone

Audible alarm(s) Yes

Audible alarm modes Low battery alarm, Overload alarm

Ports & interfaces

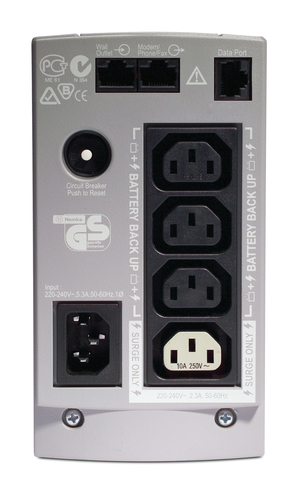

AC outlet types C13 coupler

Power plug C14 coupler

AC outlets quantity 4 AC outlet(s)

Number of output IEC jumpers 2

USB port Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 9 Ah

Battery capacity 95 VAh

Battery voltage 12 V

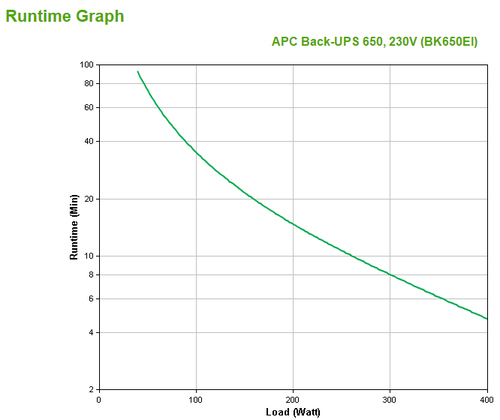

Typical backup time at full load 4.7 min

Typical backup time at half load 14.7 min

Battery life (max) 6 year(s)

Battery recharge time 8 h

Automatic battery test Yes

Design

Form factor Tower

Cable length 2 m

Product colour Beige

LED indicators Yes

Certification A-tick, C-tick, CE, GOST, NEMKO

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 5 - 95%

Storage relative humidity (H-H) 5 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates ENERGY STAR, Green Premium, RoHS

Weight & dimensions

Width 91 mm

Depth 284 mm

Height 165 mm

Weight 6.03 kg

Package width 185 mm

Package depth 415 mm

Package height 494 mm

Package weight 7.31 kg

Packaging data

Cables included USB cable

Quick installation guide Yes

Software CD Yes

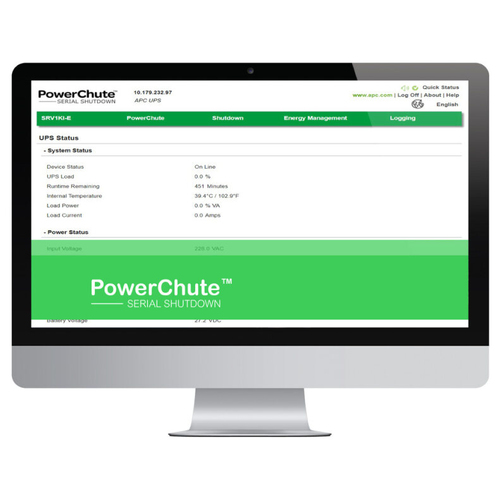

Bundled software PowerChute Personal Edition

Logistics data

Products per pallet 48 pc(s)

Harmonized System (HS) code 85078000

Products per master (outer) case 1 pc(s)

Other features

Nominal output voltage 230 V

Nominal input voltage 230 V

Filtering Yes

Packaging content Detachable IEC C13 to IEC C14 power cords
