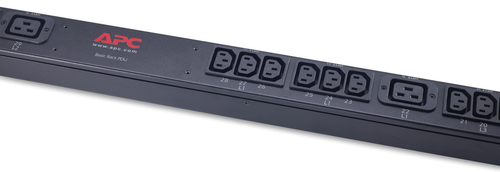

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19 power distribution unit (PDU)

AP7557 - 731304254102

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19 power distribution unit (PDU) 42 AC outlet(s) 0U Black

Brand: APC HW
Product code: AP7557
SKU: HQON8I56XMXHP
EAN/GTIN: 731304254102

Basic 0U Black
42 AC outlet(s) C13 coupler, C19 coupler
11000 W

€884.02 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 16A 3P+N+PE. Cable length: 0.91 m. Nominal input voltage: 400 V, AC input frequency: 47/63 Hz, Nominal output voltage: 230 V. Certification: C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD

APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.

- Low Cost Power Distribution.
- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input.

Specifications

Design

PDU types Basic

Rack capacity 0U

Mounting Vertical

Product colour Black

Ports & interfaces

AC outlets quantity 42 AC outlet(s)

AC outlet types C13 coupler, C19 coupler

Input connection type IEC 309 16A 3P+N+PE

Output connections (36) IEC 320 C13 (6) IEC 320 C19

Features

Cable length 0.91 m

Certification C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD

Power

Nominal input voltage 400 V

AC input frequency 47/63 Hz

Nominal output voltage 230 V

Load capacity 11040 VA

Maximum input current per phase 16 A

Maximum total current draw per phase 16 A

Maximum power 11000 W

Weight & dimensions

Dimensions (WxDxH) 56 x 44 x 1619 mm

Weight 5.45 kg

Operational conditions

Operating temperature (T-T) -5 - 45 °C

Storage temperature (T-T) -25 - 65 °C

Operating relative humidity (H-H) 5 - 95%

Storage relative humidity (H-H) 5 - 95%
