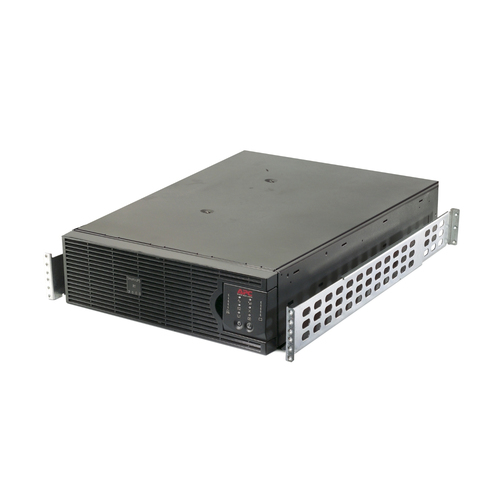

APC Smart-UPS RT 3000VA uninterruptible power supply (UPS)

Features

UPS topology Double-conversion (Online)

Output power capacity 3 kVA

Output power 2100 W

Input operation voltage (min) 100 V

Input operation voltage (max) 280 V

Input frequency 50/60 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Surge energy rating 480 J

Efficiency 92%

Crest factor 3:1

Emergency Power Off (EPO) Yes

Output voltage Total Harmonic Distortion (THD) 3%

Noise level 55 dB

Ports & interfaces

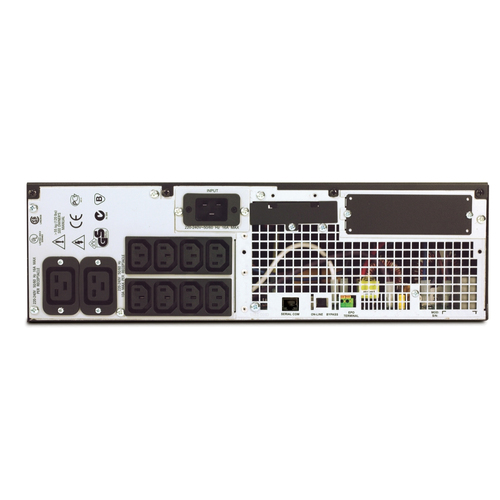

AC outlet types C13 coupler, C19 coupler

AC outlets quantity 10 AC outlet(s)

Number of output IEC jumpers 2

Ethernet LAN (RJ-45) ports 1

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery recharge time 2.5 h

Design

Form factor Rackmount

Rack capacity 3U

Cable length 2.44 m

Product colour Black

LED indicators Yes

Operational conditions

Operating temperature (T-T) 0 - 55 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates RoHS

Weight & dimensions

Width 130 mm

Depth 660 mm

Height 432 mm

Weight 54.5 kg

Package weight 63.6 kg

Logistics data

Harmonized System (HS) code 85078000

Other features

Dimensions (WxDxH) 130 x 660 x 432 mm

Nominal output voltage 230 V

Nominal input voltage 230 V

Package dimensions (WxDxH) 603 x 980 x 347 mm
