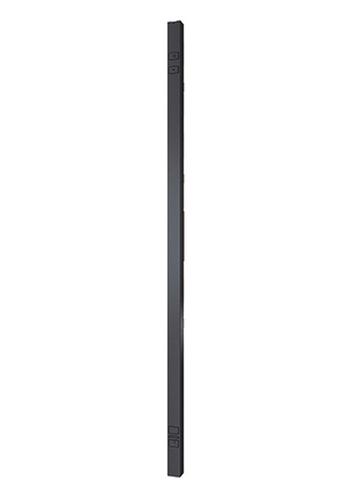

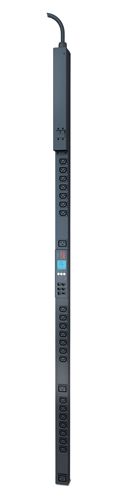

APC AP8453 power distribution unit (PDU)
APC AP8453 power distribution unit (PDU) 24 AC outlet(s) 0U Black
- Brand
- APC HW
- Product code
- AP8453
- SKU
- BHHZLHPFVJ73I
- EAN/GTIN
- 731304317555
- Single-phase Metered, Metered-by-outlet 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 7680 W
€1596.69
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
APC AP8453. PDU types: Metered, Metered-by-outlet, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3.05 m. Monitoring: Current, Power, Voltage. Maximum current: 32 A, AC input frequency: 50 - 60 Hz, Nominal output voltage: 230 V
APC Metered-by-Outlet Rack PDU, Input: 200V, 208V, 230V, Input Connections: IEC 309 32A 2P+E, Cord Length:10 feet ( 3.05 meters ), Output: 230V, Output Connections: IEC 320 C13,IEC 320 C19
| Design | |
|---|---|
| PDU types | Metered, Metered-by-outlet |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 3.05 m |
| Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 7680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 56 x 51 x 1829 mm |
| Weight | 8.21 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 163 x 117 x 2037 mm |
| Package weight | 10.5 kg |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainability certificates | RoHS |
