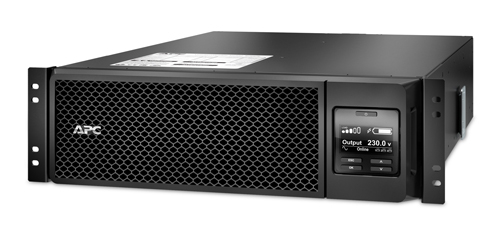

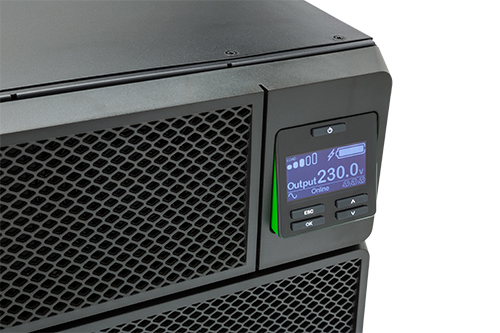

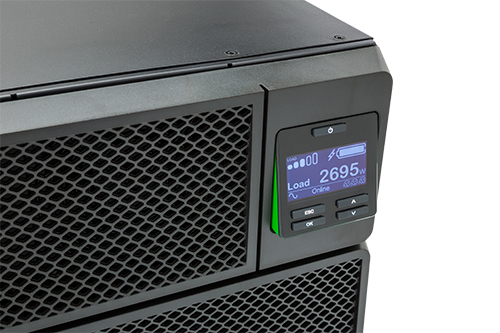

APC SRT5KRMXLW-HW uninterruptible power supply (UPS)

SRT5KRMXLW-HW - 731304301516

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit

Brand: APC HW
Product code: SRT5KRMXLW-HW
SKU: TCENA45PMYRNO
EAN/GTIN: 731304301516

Double-conversion (Online)
5 kVA 4500 W
Waveform: Sine
Sealed Lead Acid (VRLA)
Rackmount Black

€5925.97 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: Hard Wire 3-wire (2PH + G), Power plug: Hardwire, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 845 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 3U. Compliance certificates: RoHS, Certification: REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class...

APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 208V, 230V /Output 208V, 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 3 U

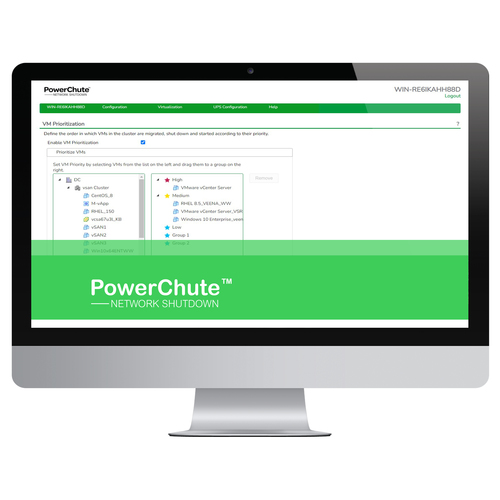

Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Temperature Probe, User Manual, Warranty card, Web/SNMP Management Card

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 5 kVA

Output power 4500 W

Waveform Sine

Input operation voltage (min) 100 V

Input operation voltage (max) 275 V

Input frequency 40 - 70 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Output frequency regulation 50/60 Hz

Surge energy rating 480 J

Efficiency 93.8%

Crest factor 3:1

Emergency Power Off (EPO) Yes

Noise level 55 dB

Surge protection Yes

Audible alarm(s) Yes

Auto-restart Yes

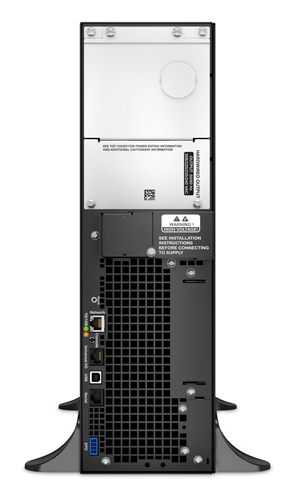

Ports & interfaces

AC outlet types Hard Wire 3-wire (2PH + G)

Power plug Terminal

USB port Yes

Serial interface Yes

Serial interface type RJ-45

SmartSlot Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 845 VAh

Number of batteries supported 1

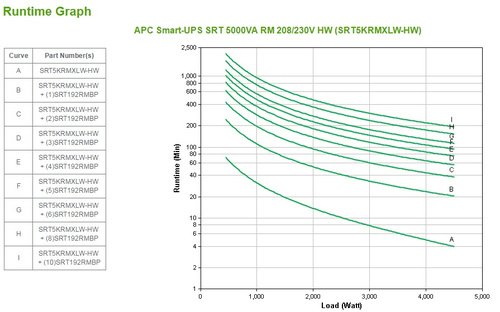

Typical backup time at full load 4 min

Typical backup time at half load 11.8 min

Battery life (max) 5 year(s)

Battery recharge time 1.5 h

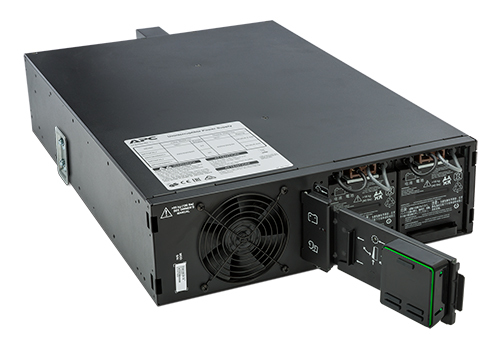

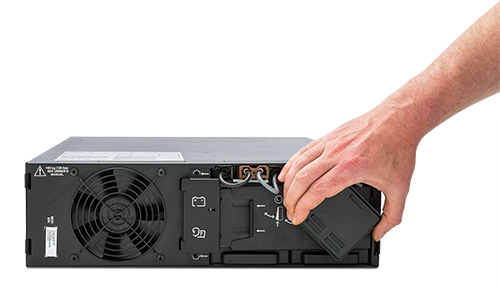

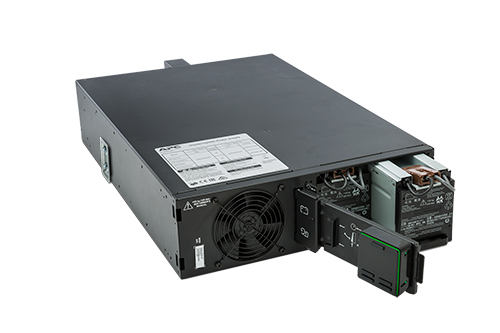

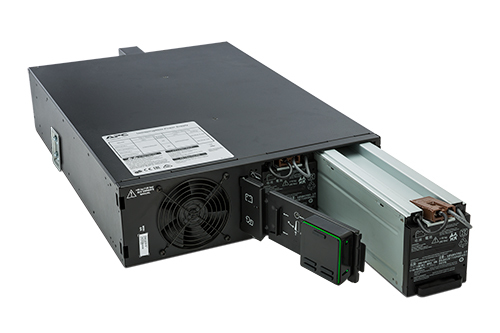

Hot-swap battery Yes

Automatic battery test Yes

Cold start Yes

Design

Form factor Rackmount

Rack capacity 3U

Product colour Black

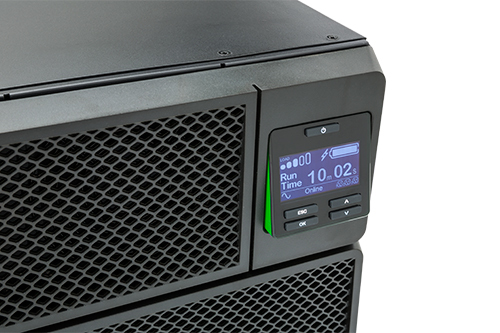

Display type LCD

LED indicators Status

International Protection (IP) code IP20

Certification REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates RoHS, ENERGY STAR

Weight & dimensions

Width 432 mm

Depth 719 mm

Height 130 mm

Weight 55.8 kg

Package width 610 mm

Package depth 960 mm

Package height 330 mm

Package weight 68 kg

Logistics data

Products per pallet 6 pc(s)

Harmonized System (HS) code 85078000

Other features

Number of phases 3

Battery type APCRBC140

Output connections 1x Hard Wire 3-wire (2PH + G) 1x Hard Wire 3-wire (H N + G)
