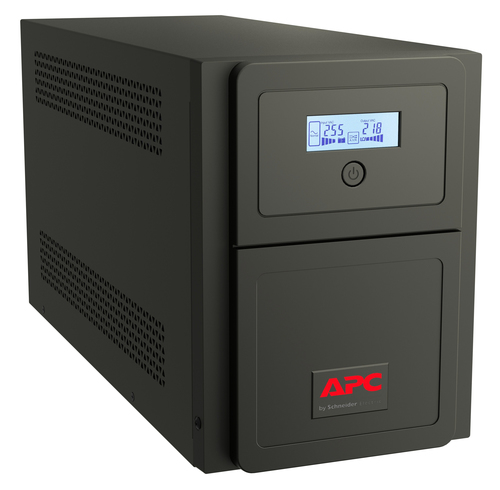

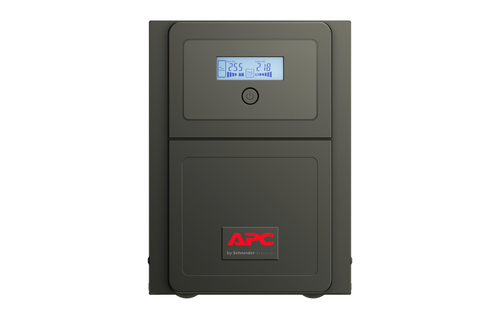

APC Easy UPS SMV uninterruptible power supply (UPS)
APC Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support
- Brand
- APC HW
- Product code
- SMV750CAI
- SKU
- CDCJ81Q5AC6A2
- EAN/GTIN
- 731304346562
- Line-Interactive
- 0.75 kVA 525 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 7 Ah
- Tower Black
€299.87
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
APC Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 525 W. AC outlet types: IEC 320, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LCD. Cables included: USB cable
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.75 kVA |
| Output power | 525 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 295 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | -1 - 1% |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 8 A |
| Crest factor | 3:1 |
| Noise level | 45 dB |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Ports & interfaces | |

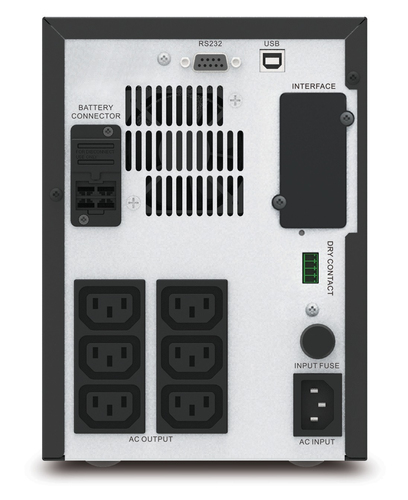

| AC outlet types | IEC 320 |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Cold start | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 410 mm |
| Height | 220 mm |
| Weight | 13.6 kg |
| Battery width | 27.2 cm |
| Battery depth | 50.8 cm |
| Battery height | 33.9 cm |
| Battery weight | 16.6 kg |
| Packaging data | |
| Cables included | USB cable |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
