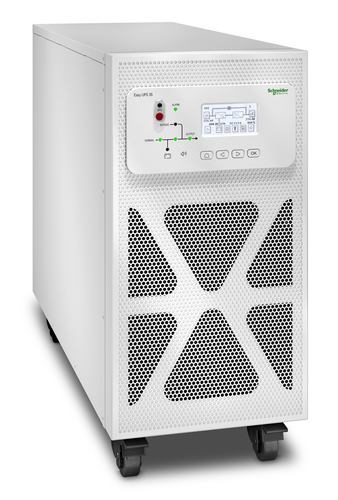

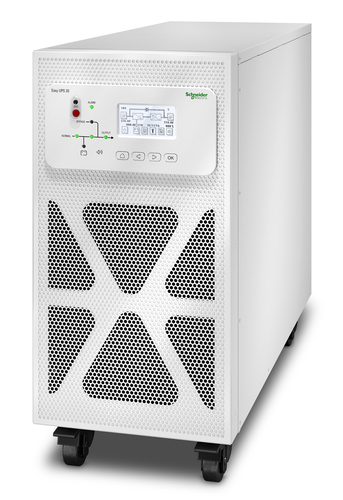

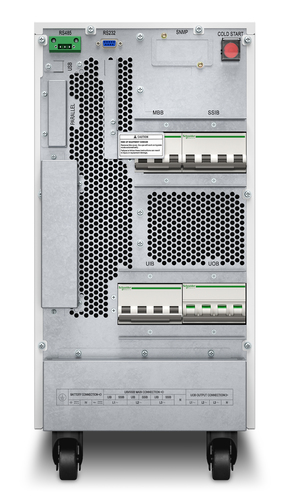

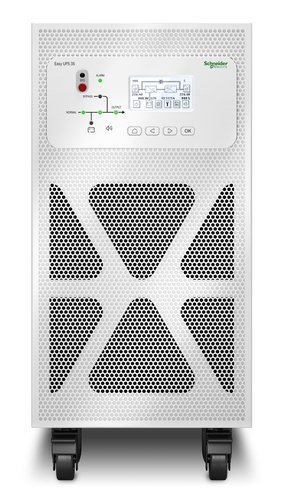

APC Easy 3S uninterruptible power supply (UPS)

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W

€5346.83 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 15000 W. Form factor: Tower, Product colour: White, International Protection (IP) code: IP20. Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE. Width: 250 mm, Depth: 700 mm, Height: 530 mm. Package width: 400 mm, Package depth: 857 mm, Package height: 772 mm

Features
UPS topology	Double-conversion (Online)
Output power capacity	15 kVA
Output power	15000 W
Waveform	Pure sine
Input operation voltage (min)	304 V
Input operation voltage (max)	477 V
Input frequency	45/65 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	28 A
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Crest factor	3:1
Overload capacity (10 minutes)	125%
Overload capacity (1 minute)	150%
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Noise level	60 dB
Power protection features	Overload
Design
Form factor	Tower
Product colour	White
International Protection (IP) code	IP20
Certification	CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 984.3 m
Non-operating altitude	0 - 14763.6 m
Weight & dimensions
Width	250 mm
Depth	700 mm
Height	530 mm
Weight	36 kg
Package width	400 mm
Package depth	857 mm
Package height	772 mm
Package weight	50 kg
Packaging data
Quick installation guide	Yes
Logistics data
Harmonized System (HS) code	85078000
Other features
Output voltage	400 V
