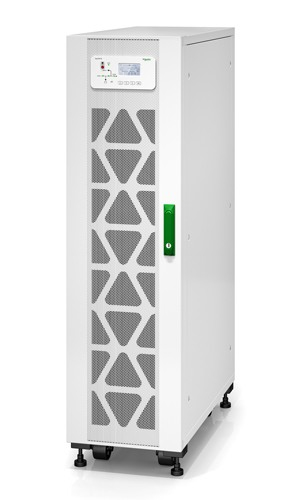

APC E3SUPS15K3IB uninterruptible power supply (UPS)
APC E3SUPS15K3IB uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W
- Brand
- APC HW
- Product code
- E3SUPS15K3IB
- SKU
- Q6VYZUDTFMAOU
- Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- The intuitive graphical user interface allows for easy system configuration
- Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment
- Simplifies installation and UPS maintenance while minimizing space requirements
- Verifies UPS performance before you connect your load, without the need for a load bank
- Quickly roll the compact and lightweight UPS into position
- Protect the UPS in harsh environments
- Saves your battery power for when you really need it - during power cuts!
- Multiple units can be placed in parallel to meet power capacity and redundancy requirements
- When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT
€5926.88
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Easy UPS 3S 15 kVA 400 V 3:1 UPS for internal batteries
APC E3SUPS15K3IB. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 15000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 240 V. Product colour: White. Compliance certificates: RoHS, Certification: REACH: Contains No SVHCs. Width: 380 mm, Depth: 907 mm, Height: 1400 mm
Easy UPS 3S 15 kVA 400 V 3:1 UPS for internal batteries
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 15 kVA |
| Output power | 15000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 400 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Crest factor | 3:1 |
| Overload capacity (10 minutes) | 125% |
| Overload capacity (1 minute) | 150% |
| Noise level | 60 dB |
| Ports & interfaces | |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Design | |
| Product colour | White |
| Certification | REACH: Contains No SVHCs |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 130 kg |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 145 kg |
| Packaging data | |
| Fuse included | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Battery type | VRLA |
| Output voltage | 220 - 240 V |
