APC SRT10RMXLIX806 power distribution unit (PDU)

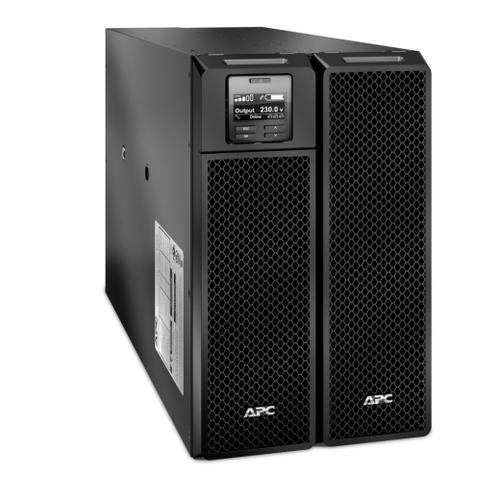

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 4x 32A IEC outlets, Network Card+SmartSlot, Extended runtime, W/ custom PDU, W/ rail kit
- Brand
- APC HW
- Product code
- SRT10RMXLIX806
- SKU
- 2V89E8BQ4JQNM
- EAN/GTIN
- 731304334507
- Battery failure notification
- Green mode
- LCD graphics display
€10380.31
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 4x 32A IEC outlets, Network Card+SmartSlot, Extended runtime, W/ custom PDU, W/ rail kit. PDU types: Basic, Type: Three-phase, Mounting: Vertical. AC outlets quantity: 10 AC outlet(s), AC outlet types: C13 coupler, C14 coupler. LED indicators: Power, Status. Nominal input voltage: 230, 400 3PH, Maximum current: 47 A, AC input frequency: 40-70 Hz. Compliance certificates: RoHS, Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Proven Industrial UPS power protection for control applications and harsh environments.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Three-phase |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C14 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
| Features | |
| LED indicators | Power, Status |
| Surge protection | Yes |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Power | |
| Nominal input voltage | 230, 400 3PH |
| AC input frequency | 40-70 Hz |
| Maximum current | 47 A |
| Nominal output voltage | 230 V |
| Output voltage | 220/230/240 V |
| Maximum input current per phase | 54 A |
| Maximum total current draw per phase | 18 A |
| Maximum power | 10000 W |
| Surge energy rating | 480 J |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 715 mm |
| Height | 263 mm |
| Weight | 111.8 kg |
| Packaging data | |
| Package weight | 130 kg |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 461 mm |
| Package type | Box |
| Packaging content | |
| Cables included | USB |
| Manual | Yes |
| Rack mount kit | Yes |
| Packaging content | CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Operating temperature (T-T) | 32 - 104 °F |
| Technical details | |
| Sustainability certificates | RoHS |
