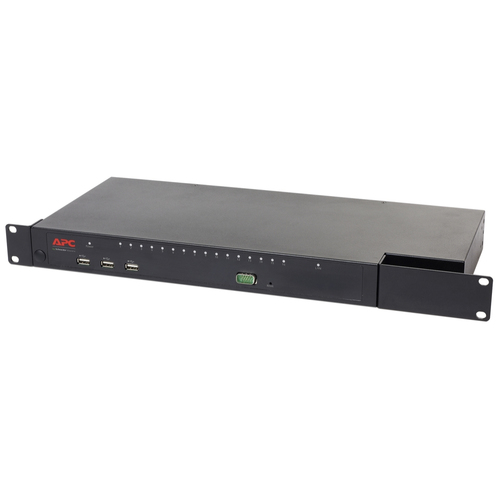

APC KVM1116R KVM switch Rack mounting Black
- Brand
- APC HW
- Product code
- KVM1116R
- SKU
- ORDYDP8E6K0VO
- EAN/GTIN
- 731304340195
- Manage multiple servers with just one keyboard, monitor and mouse
Product Info
Occupies 1U of rack space
Conserve valuable rack space in the data center.
Hot Pluggable Operation
Add or remove servers without having to power off the switch.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Out-of-band management
Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.

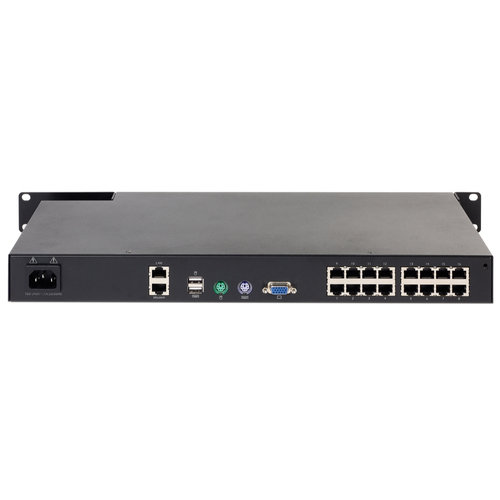

| Ports & interfaces | |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE |
| Display | |
| Built-in display | No |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 424 mm |
| Depth | 188 mm |
| Height | 43 mm |
| Weight | 2.59 kg |
| Packaging data | |
| Package width | 619 mm |
| Package depth | 330 mm |
| Package height | 146 mm |
| Package weight | 3.99 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
