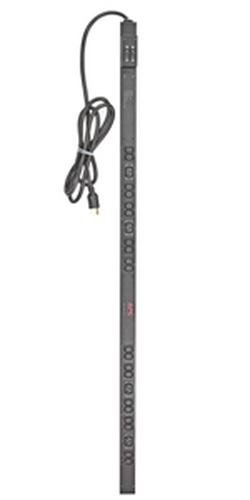

APC Basic Rack 4.992kVA power distribution unit (PDU)
APC Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19
- Brand
- APC HW
- Product code
- AP7541
- SKU
- HMLI1MGPGNLP1
- EAN/GTIN
- 731304225560
€538.91
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
-Toolless mounting capability.
APC Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19. Product colour: Black. Input connection type: NEMA L6-30P, Output connections: (20) IEC 320 C13 (4) IEC 320 C19. Cable length: 3.05 m. Nominal input voltage: 208 V, AC input frequency: 50 - 60 Hz, Load capacity: 4992 VA. Certification: cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | NEMA L6-30P |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
| Features | |
| Cable length | 3.05 m |
| Certification | cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL |
| Power | |
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Load capacity | 4992 VA |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 24 A |
| Weight & dimensions | |
| Dimensions (WxDxH) | 56 x 44 x 1619 mm |
| Weight | 5.57 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
